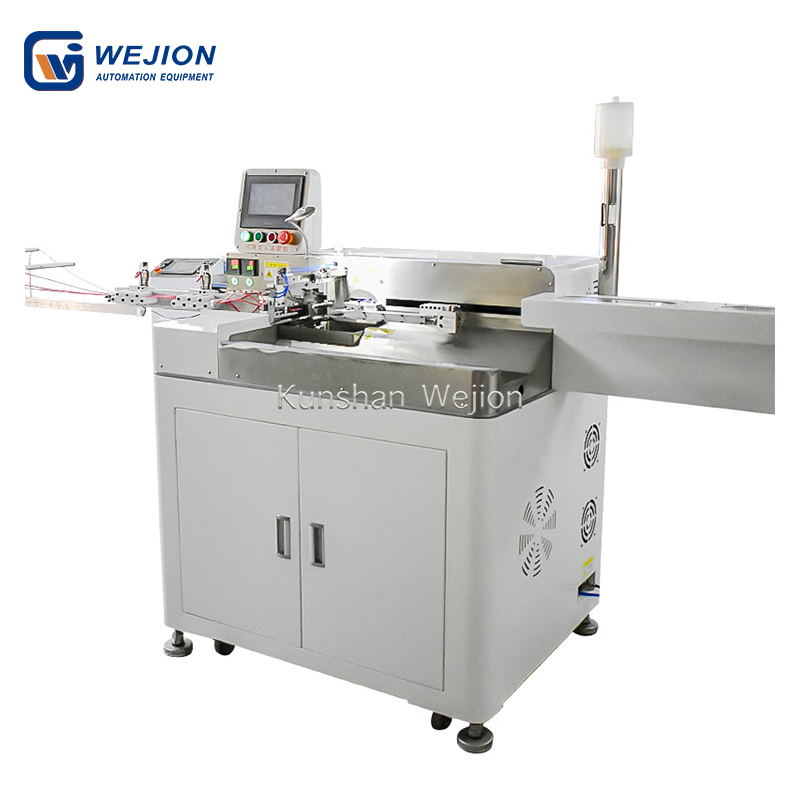

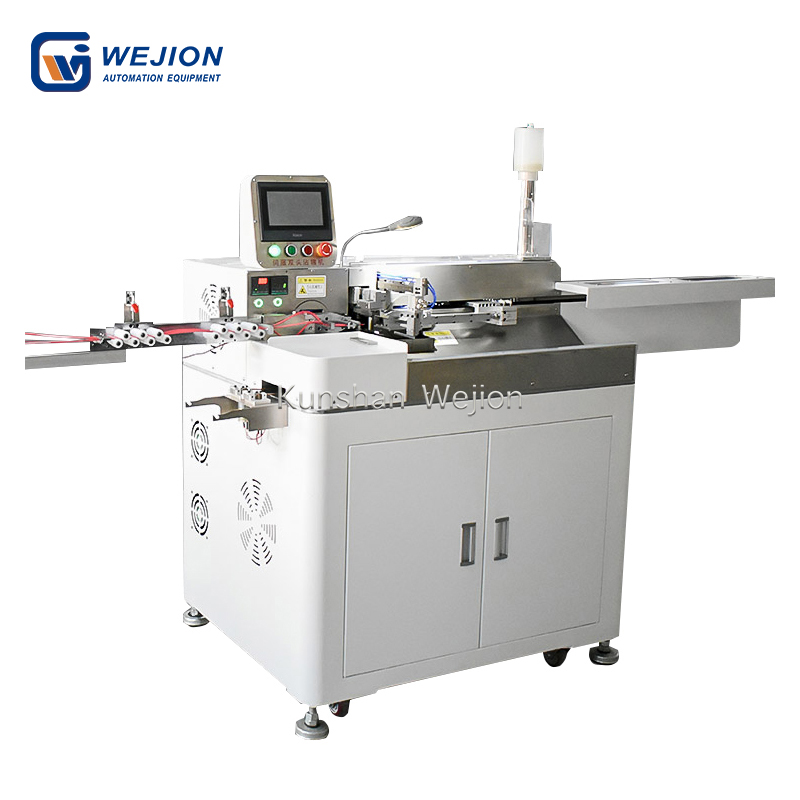

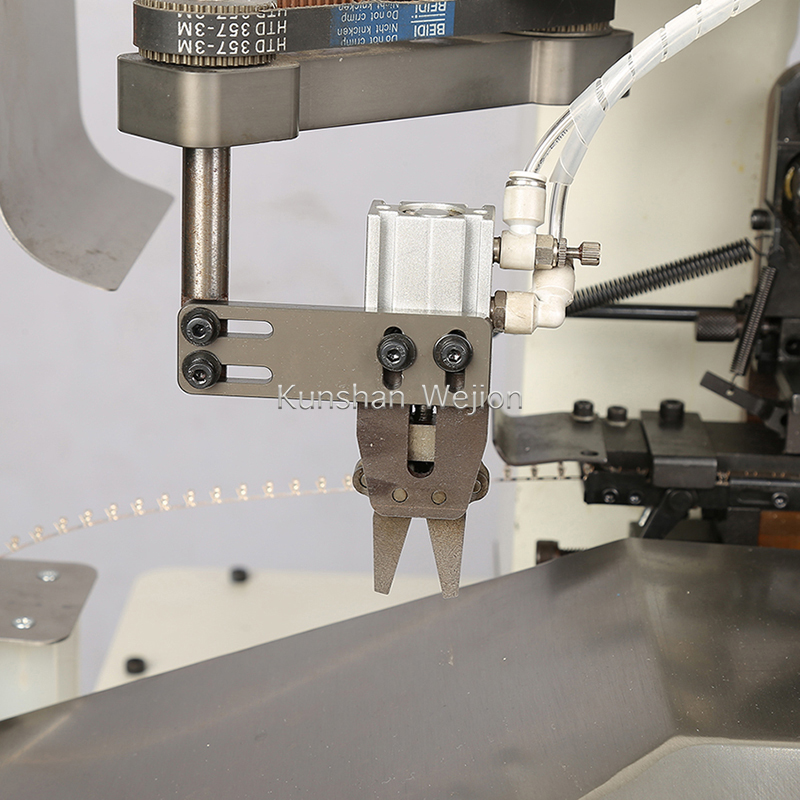

TA-DZX01 full automatic wire cut,strip and crimping tining machine for 5 wires

The TA-DZX01 is a multi-functional processing device specifically designed for 5 cables. It integrates four core functions: cutting, stripping, crimping terminals, and tinning. With precise terminal crimping on one end and efficient tinning on the other, its automated operation significantly boosts cable processing efficiency, delivering a convenient and highly effective cable processing experience for users.​
Add to Quote
Model TA-DZX01 Category Tags , ,

Description

Functions​

  1. Versatile Wire Processing: The TA-DZX01 is designed for comprehensive wire processing, capable of handling single wires as well as parallel wire cutting, branching, and a variety of end treatments. It supports wire gauges ranging from AWG18 – 32#, making it suitable for a wide array of electrical and electronic applications.​
  1. Precise Cutting: With a cutting length range of 10 – 600mm (customizable), the machine ensures accurate wire cutting. The cutting tolerance of 0.2±0.02*L (length) guarantees high precision, minimizing material waste and ensuring consistent quality across all cut wires.​
  1. Flexible Stripping: The stripping length can be adjusted from 0 – 7mm, with customizations available for lengths exceeding 7mm. This flexibility allows for tailored wire stripping according to specific application requirements, ensuring optimal electrical connections.​
  1. Efficient Tinning: The machine offers tinning lengths between 0.5 – 7mm, enabling effective soldering preparation. Tinning enhances the conductivity and corrosion resistance of wire ends, ensuring reliable electrical connections.​
  1. Powerful Crimping: Boasting a crimping ability of 2.0 tons, the TA-DZX01 can securely attach terminals to wires, ensuring a stable and durable connection. This high – pressure crimping capability is crucial for maintaining electrical integrity and mechanical strength.​
  1. Multifunctional Operation: It can perform single – end crimping, double – end stripping, single – end half twist, twisting, and dip tin operations, streamlining the wire processing workflow. This multifunctionality makes it an all – in – one solution for wire preparation, reducing the need for multiple machines and increasing production efficiency.​
  1. High – Volume Production: The machine has an impressive production capacity of 5500 – 7500 pieces per hour, making it ideal for large – scale manufacturing operations. This high output rate ensures quick turnaround times and increased productivity.​

Features​

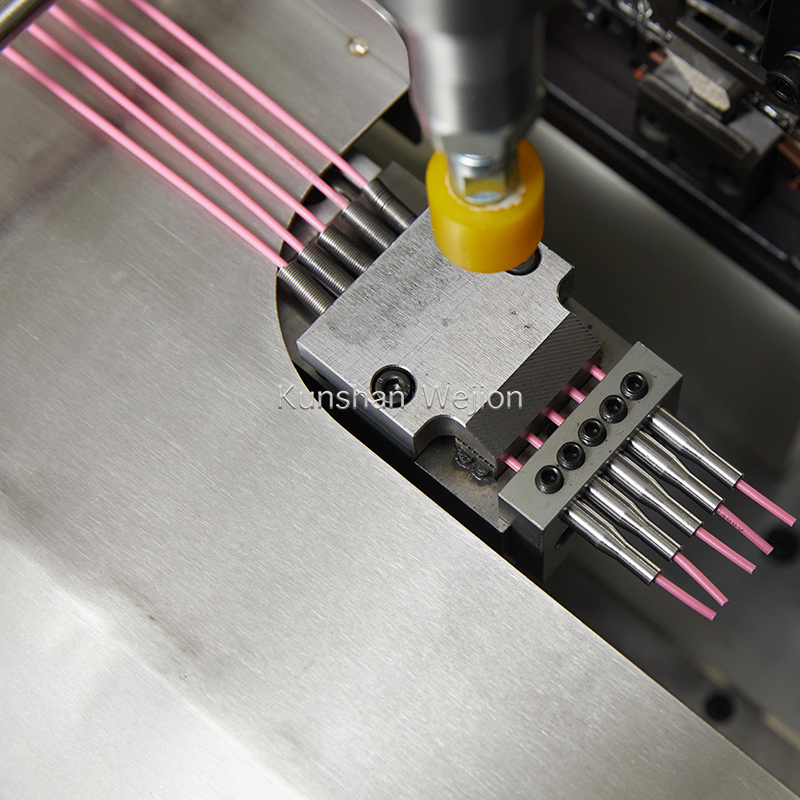

  1. Dedicated Design for 5 – Wire Processing: Specifically engineered for handling 5 wires simultaneously, the TA-DZX01 simplifies the processing of multi – wire assemblies. This design feature significantly reduces processing time compared to handling wires individually, making it highly efficient for applications that require multiple wire connections.​
  1. Sturdy and Stable Build: With dimensions of 1210*770*1370mm and weighing 450kg, the machine offers a robust and stable structure. This heavy – duty construction minimizes vibrations during operation, contributing to consistent processing quality and a longer lifespan.​
  1. Standardized Power Supply: Operating on an AC220v/50/60HZ power supply, the TA-DZX01 is compatible with common electrical systems worldwide. This standardization ensures easy integration into existing production lines without the need for specialized power adaptations.​
  1. Optimal Air Pressure Requirement: Requiring an air connection of 0.5Mpa – 0.7Mpa, the machine operates within a typical industrial air pressure range. This ensures reliable operation and easy connection to existing factory air supply systems.​
  1. User – Friendly Operation: Despite its advanced functionality, the TA-DZX01 is designed for ease of use. Its intuitive interface and straightforward operation allow operators to quickly learn and master the machine, reducing training time and improving overall productivity.​

Technical Data

Model TA-DZX01
Power Supply AC220v/50/60HZ
Dimensions 1210*770*1370mm
Weight 450kg
Wire Range AWG18-32#
Cutting Length 10-600mm(can be customzed)
Cutting Tolerence 0.2±0.02*L(length)
Stripping Length 0-7mm(≥7mm needs to be customized)
Tinning Length 0.5-7mm
Crimping Ability 2.0ton
Air Connection 0.5Mpa-0.7Mpa
Mechanical Function Single wire/parallel wire cutting and branching/single-end crimping/double-end stripping/single-end half twist/twisting/dip tin
Production Capacity 5500-7500 pcs/h

Additional information

Description

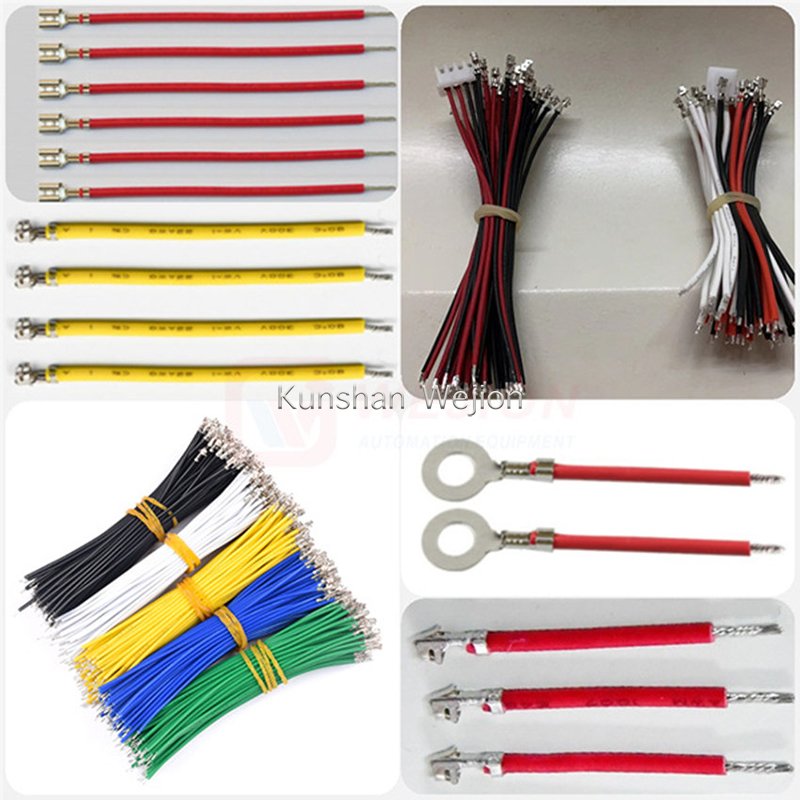

  1. Electronics and Electrical Appliance Manufacturing: It is suitable for processing internal connection wire harnesses of computers, mobile phones, televisions, etc. It can accurately handle 5 wires, completing processes such as cutting, stripping, crimping terminals on one end and tinning on the other, ensuring stable internal signal transmission. It can also be used for the production of internal wire harnesses of small household appliances like microwave ovens and rice cookers, guaranteeing the reliability of electrical connections in these devices.​
  1. Automotive Manufacturing: It meets the production requirements of complex wire harnesses for automotive dashboards, sensors, in-vehicle electronic devices, etc. With a powerful crimping capacity of 2.0 tons, it ensures a firm connection between terminals and wires, adapting to the vibration environment during vehicle operation. It can efficiently complete the processing of wire harnesses for automotive lighting systems, airbags, and other components, meeting the high reliability and safety standards of the automotive industry.​
  1. Communication Equipment Manufacturing: It is used for processing data cables of network switches, routers, and other equipment. Its precise cutting and stripping functions, combined with terminal crimping on one end and tinning on the other, ensure stable communication signal transmission. In the production of internal wire harnesses for base station equipment and fiber optic communication equipment, it can effectively improve production efficiency and the quality of cable connections.​
  1. Smart Home Industry: It can process the cables of smart sockets, lights, smart door locks, and other devices. The flexible settings for stripping and tinning lengths are suitable for the electrical connection requirements of different smart home products. It meets the processing requirements of multi-wire integration in home automation systems, ensuring the stable operation of smart home devices.​
  1. Aerospace Field: With high-precision cutting (tolerance 0.2±0.02*L) and stable processing performance, it meets the stringent production standards of wire harnesses for aerospace equipment. It can handle high-precision wire harnesses for aircraft dashboards, navigation systems, satellite communication devices, etc., ensuring the reliability of electrical connections in extreme environments.​
  1. Medical Device Industry: It is suitable for the production of internal wire harnesses of medical monitors, electrocardiographs, and other devices. Its stable crimping and tinning processes guarantee the electrical safety of medical devices. In the processing of wire harnesses for operating room equipment and in vitro diagnostic instruments, it meets the extremely high requirements for the precision and stability of cables in the medical device industry.​
  1. Industrial Automation: It is used for processing the internal wire harnesses of industrial robots and automated production line equipment. Its high production capacity (5,500 – 7,500 pieces per hour) meets the needs of large-scale production. It can handle complex wire harnesses for industrial control panels, sensor networks, etc., providing a guarantee for the stable operation of industrial automation equipment.​
  1. New Energy Field: It plays a role in the processing of wire harnesses for electric vehicle battery management systems, charging piles, as well as connection cables for solar photovoltaic panels. Its powerful multi-functional processing capabilities adapt to the diverse requirements of cable processing for new energy devices.
