The purpose of winding and binding machines is to neatly wind and bind wires and cables into coils. No more winding cables by hand; it does it automatically. The machine measures the length of the cable, rolls it evenly, and then ties it up tightly. The finished product looks polished and professional because each coil is the same size. These tools are used by small workshops, electronics companies, and cable manufacturers. Many businesses only buy from well-known winding and binding machine manufacturers to guarantee the machine’s reliable operation.
Purpose of Winding and Binding Machine in Modern Industry
The main purpose of Winding and Binding Machine Manufacturer Solutions is to make cable work faster and simpler. In factories that make a lot of things, speed and accuracy are very important. Using this machine helps cut down on mistakes made by people. It saves money by cutting down on wasted cable as well. It’s easier to move, store, and pack wrapped coils. A skilled wire winding and binding machine manufacturer creates machines that can run continuously for extended periods of time.
Structure of Winding and Binding Machine Explained
The design & purpose of winding and binding machine is simple but strong. The strong aluminum frame keeps it stable while you use it. An internal motor turns the winding wheel. Also, there is a measurement part to make sure that the cable length is correct. The worker can use a control panel to change the length and speed. The machine is built with strong steel so that it can handle regular use. The machine will last longer because it is built to last.
Main Parts of the Machine
- The tool that checks and controls how long the cables are
- Source of power to turn and wind the wire
- A device for tightly tying the coil
- A control screen that is easy to use
- Strong base for keeping machines stable
Core Functions of a Cable Winding and Binding Machine
With cable winding and binding machines, multitasking is the name of the game. First, it finds the right length of the cable. Then, the cable is cut cleanly. After that, the cable is wound into a round coil. Then, the coil is tightly tied so that it doesn’t come loose. This is done with machines. You save time and get better quality. Less work is needed, which lowers the cost of labor.
Key Working Functions
- Easy to measure length
- Cutting quickly and neatly
- Winding a cable without any bumps
- Tethered knotting system
- Stop right away for safety reasons
Benefits of Using a USB Cable Winding and Binding Machine
A USB cable winding and binding machine works best with small, flexible wires like charging cables. USB cords tend to get tangled and messy. This machine rolls up every cable in a neat and even way. Customers like coils that are neat. It also makes the packaging process go faster. Many electronics factories use it all the time. This is something that makers of charging and data cords should think about.
Production Efficiency and Cost Control
A winding and binding machine makes it easier for factories to work. This makes it possible to wind more coils in less time. The machine’s accuracy means there are fewer mistakes. So, there will be less waste of materials. Higher profits come from saving money on materials. Even after many hours of use, a high-quality winding and binding machine manufacturer will make machines that work flawlessly. So, businesses can grow and stay ahead of the competition.

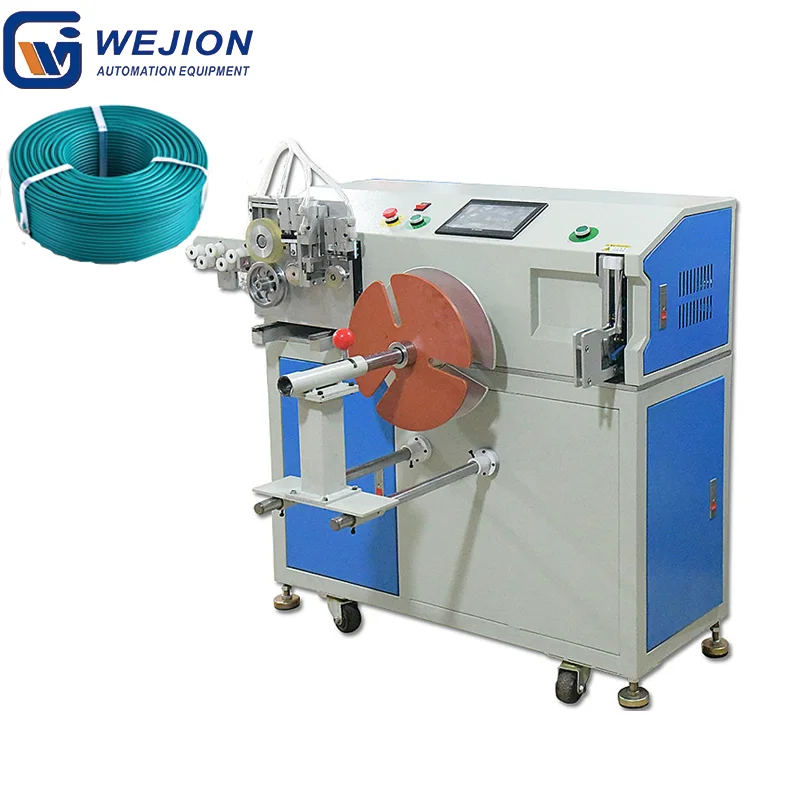

BH-RZ01 Floor-standing Measuring Cutting Winding and Tying Machine (Max. Load 3kg)
If you want lightweight cables, think about the BH-RZ01. It’s easy to use: just measure, cut, wind, and tie. It can handle any wire that weighs up to 3 kilograms. Because the machine is small, it doesn’t take up much space. If you use it, you’ll be up and running in no time. It always makes neat coils. This type is best for making USB cables and smaller cables. This machine fulfills all the purpose of winding and binding machine.

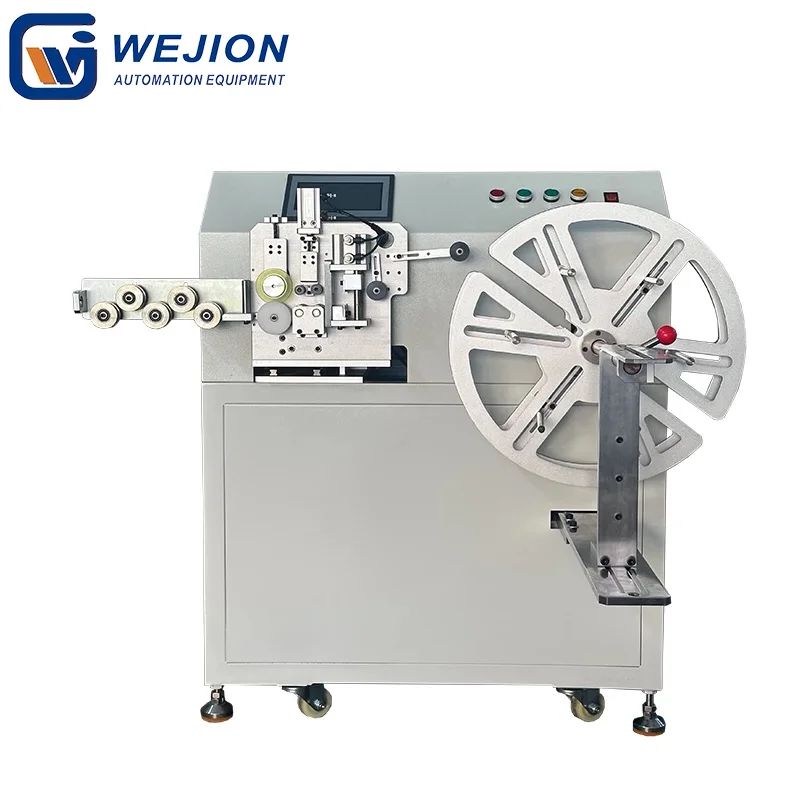

BH-JF01 Floor Standing Durable Meter Counting Wire Winding Machine (Max. Load 20kg)
The BH-JF01 can lift heavy things without any trouble. It can handle twenty kg of cable without any problems. There is a metering mechanism that lets you measure the wire’s length exactly. The building is strong and made to be used a lot. It makes it easy to wind large, heavy coils. This idea works best in big factories. It is strong and reliable, and it can handle a lot of work.
BH-JFS01 Floor Standing Cable Measuring Cutting Winding Machine (Max. Load 15kg)
The BH-JFS01 is a good choice for cables that are medium-sized. It can handle up to 15 kg. It winds the cable after it has been measured and cut. The machine’s whisper-quiet operation makes the workplace more pleasant. It’s easy to understand how to use the controls and make changes. As businesses grow, they can use this strategy to their advantage. It gives you a middle ground between power and price.
| Model | Max Load | Main Function | Best For |
| BH-RZ01 | 3kg | Measure, Cut, Wind, Tie | Small cables |
| BH-JF01 | 20kg | Meter Count & Wind | Heavy wires |
| BH-JFS01 | 15kg | Measure, Cut & Wind | Medium cables |
Maintenance of Winding and Binding Machine
You have to take care of the winding and binding machine on a regular basis. Cleaning the equipment every day is a good idea. Make sure to clean up any dust or small pieces of wire. Lubricate the moving parts to keep things running smoothly. Before you use the cutting blade, make sure it is sharp. Tighten any screws or belts that are loose. Proper maintenance makes the machine last longer and safer.
Simple Maintenance Checklist
- Once a day, take care of the machines.
- Check the screws and belts.
- Parts that move and oil them
- Check the dashboard
- Change out worn parts when they need to be.
Why Choose a Professional Manufacturer
A trustworthy winding and binding machine manufacturer must be chosen. A good wire winding and binding machine manufacturer should have the tools you need. They also give advice and teach. In an emergency, they respond quickly. Quality manufacturing means using modern designs and strong materials. Because of this, the machine will last longer. Worries go away when you pick the right business to work with.
Applications in Different Industries
There are many purpose of winding and binding machine . Electrical companies use it for power cables and wiring in homes. USB cable makers use it to make charging cords. It is used for wiring inside appliances. Automobile assembly plants use it in their vehicle wiring systems. Packaging companies use it to get cables ready to be sent out. This makes it clear that the machine could be used in a number of ways.
Exact Place to Buy Winding and Binding Machine
Kunshan Weijiang Automation Equipment Co., Ltd. makes automation machines for cable processing. The company focuses on quality and safety. Their machines are easy to use and built to last. And the purpose of winding and binding machine they built to provide the best outcome. They care about customer satisfaction. Their team offers helpful service and support. You can visit their official website to learn more about their products and solutions.
FAQs
What is the Purpose of Winding and Binding Machine?
It measures cable length, cuts the cable, winds it into a coil, and ties it. The process is automatic. It saves time and reduces hard work. It also makes the coils look neat. Factories use it to improve speed and quality.
Why is it important in cable factories?
It helps factories work faster. It keeps all coils the same size. It reduces manual labor. It lowers material waste. It keeps the workspace clean and organized.
How often should maintenance be done?
The machine should be cleaned every day. Parts should be checked weekly. The motor and system can be checked monthly. Oiling parts regularly keeps them smooth. Good maintenance prevents sudden breakdowns.
Can it handle different cable sizes?
Yes, different models handle different cable weights. Small models work for light USB cables. Medium models work for normal wires. Large models handle thick industrial cables. Settings can be changed easily.
Where can I buy a reliable machine?
You can contact Kunshan Weijiang Automation Equipment Co., Ltd. through their official website. They offer different models for different needs. Their team provides guidance and after-sales support. Choosing a trusted supplier ensures a smooth production process.
