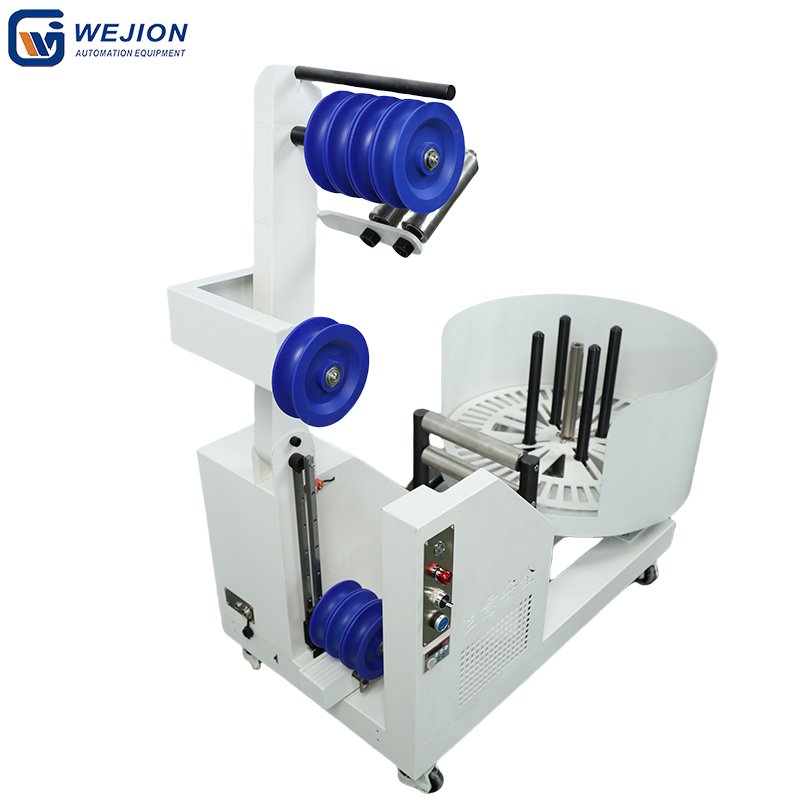

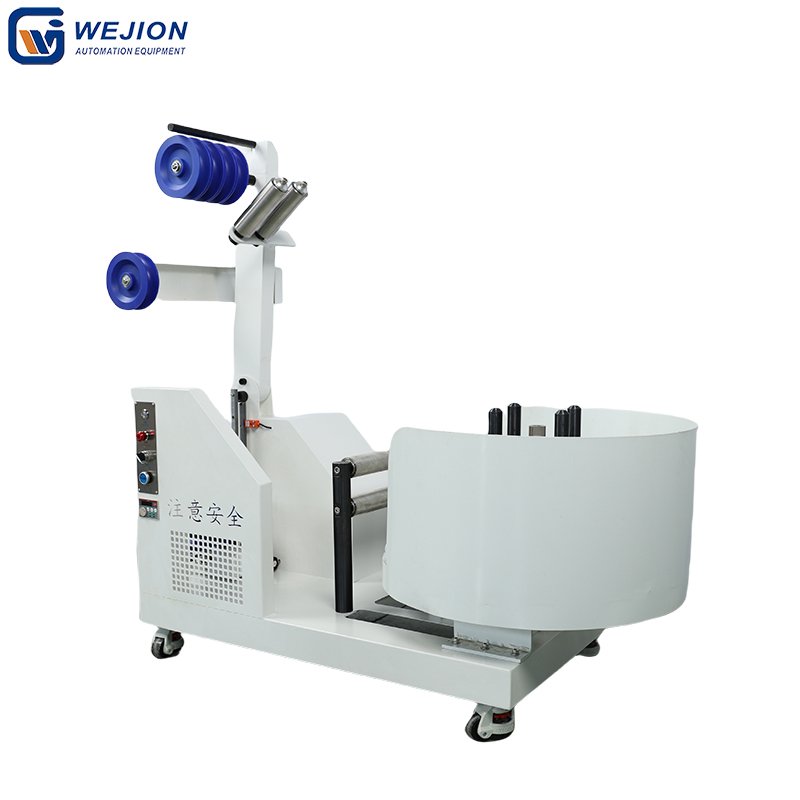

CP-FL3650 Max. Load 100kg Wire Payoff Stand

Model CP-FL3650 Category Feeder / Collector Tags Cable prefeeder, Heavy duty cable stripping machine, Payoff stand, Payoff stand electrical, Payoff stand for sale, wire payoff stand

Description

Functions
1. Stable Wire Feeding for Continuous Stripping
It maintains consistent wire feeding with a 100kg maximum load capacity and stable structure, preventing reel shaking or shifting during operation to avoid feeding jams in the wire stripper. It features adaptive stepless speed regulation to adjust feeding speed in real time, achieving synchronous linkage with the wire stripper’s operating speed.
2. Adaptive Wire Feeding for Diverse Scenarios
It supports wire reel outer diameters of 100-650mm (CP-FL3650) / 100-850mm (CP-FL3850), adapting to common reel specifications used by wire strippers without additional modifications. It is compatible with wires with or without packaging, enabling safe feeding without damaging the wire surface.
3. Precise Wire Feeding for Accurate Stripping
Driven by a three-phase motor + reducer, it delivers stable feeding power to prevent wire stretching or slack, ensuring precise cutting positions for the wire stripper. It accommodates a maximum wire diameter of 30mm (covering the common processing range of wire strippers) and maintains uniform tension during feeding.
4. Convenient Operation for Seamless Matching

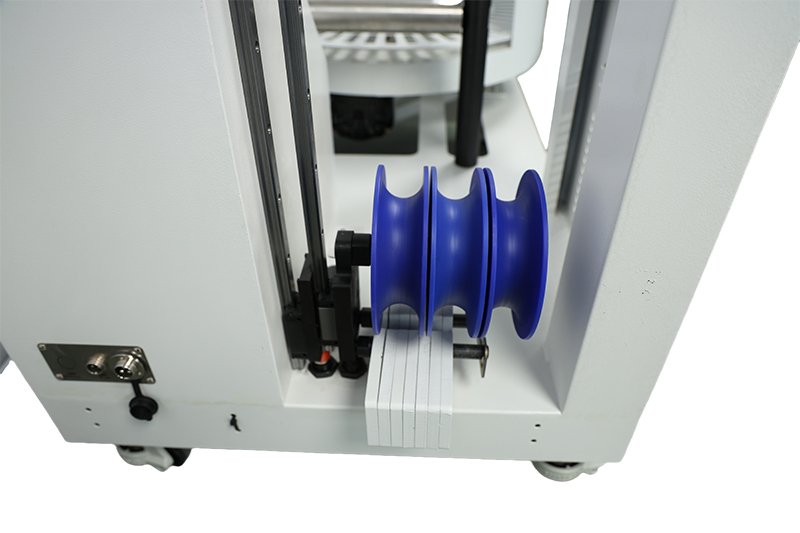

It adopts reel inner hole installation and vertical placement, allowing quick reel fixing and wire feeding alignment to shorten the wire stripper’s startup preparation time. It is equipped with double-side protection to prevent wire detachment during feeding, reducing interruptions in stripping operations.

Features
1. Strong Compatibility with Wire Strippers
It is tailor-made for pairing with wire strippers, matching their operating rhythms and processing specifications to form a smooth wire feeding-stripping workflow. It supports a wide range of reel sizes and wire types, eliminating the need for custom adapters or adjustments when switching between different stripping tasks.
2. High Stability for Uninterrupted Work
Its robust structure and 100kg load-bearing capacity ensure stable operation even during long-term continuous feeding, avoiding downtime caused by reel instability. The synchronous speed regulation function maintains consistent feeding speed, preventing mismatches with the wire stripper that could lead to processing errors.
3. Precision-Oriented Design for Quality Stripping
The three-phase motor + reducer drive system ensures steady power output, minimizing wire deformation during feeding to protect the core wire. Uniform tension control throughout the feeding process guarantees consistent stripping results, reducing the risk of incomplete stripping or core wire damage.
4. User-Friendly for Efficient Operation
The simple installation and placement design reduce setup time, allowing quick integration with wire strippers for immediate use. The double-side protection structure enhances operational safety while reducing maintenance needs, lowering overall operating costs.

Technical Data

Model	CP-FL3650	CP-FL3850
Drive Method	Three-phase Motor + Reducer	Three-phase Motor + Reducer
Rated Speed	1450 rpm	1450 rpm
Maximum Speed	2200 rpm	2200 rpm
Reel Outer Diameter	100-650 mm	100-850 mm
Through-hole Diameter	38-200 mm	38-200 mm
Reel Height	650 mm	850 mm

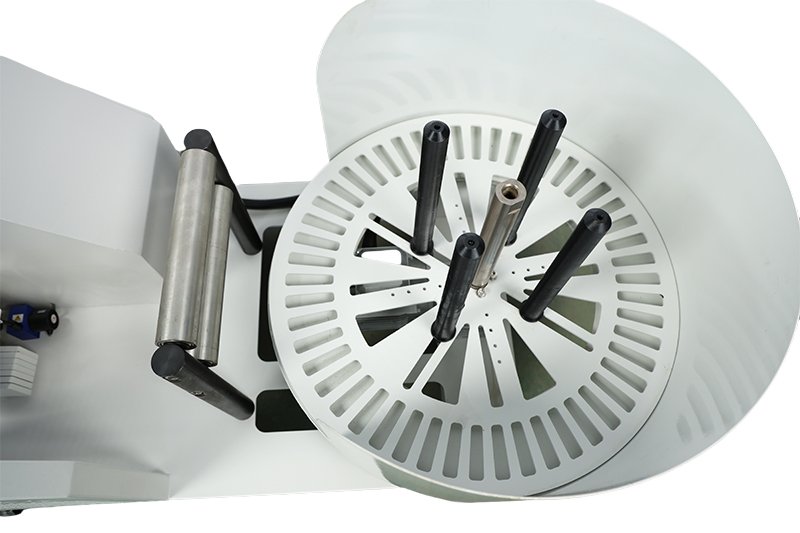

Installation Method	Reel Inner Hole Installation	Reel Inner Hole Installation
Wire Type	With/Without Packaging	With/Without Packaging
Placement Method	Vertical Placement	Vertical Placement
Speed Control Method	Adaptive Stepless Speed Regulation	Adaptive Stepless Speed Regulation
Maximum Load Capacity	100 KG	200 KG
Motor Power	0.75 KW	1.5 KW
Maximum Wire Diameter	30 mm	30 mm
Protection Type	Double-side Protection	Double-side Protection
Overall Dimension	15446601244mm	15448501344mm
Packaging Dimension	1600760800mm	1644950800mm

Additional information

Description

1. Electrical Harness and Cable Assembly Factories

As a specialized cable harness payoff machine and electrical wire payoff machine, it is core equipment in cable harness production lines. Paired with wire strippers, it provides stable, precise wire feeding for stripping, cutting, and crimping processes—critical for assembling automotive, aerospace, and electronic device harnesses. It integrates seamlessly into wire handling automation line setups, working with wire take-up and pay-off machine systems to streamline the entire harness assembly workflow. Wire payoff stand supplier and cable payoff equipment supplier highly recommend it to small and medium-sized harness factories, while cable payoff machine manufacturer and wire payoff machine manufacturer often bundle it with strippers as a turnkey solution. For businesses seeking competitive wire payoff machine price and cable payoff machine quotation, it offers cost-effective performance, making it a popular automatic wire payoff for sale in this sector.

2. Electrical Component Manufacturing Plants

In producing transformers, motors, sensors, and small electrical parts, it functions as an automatic wire supply unit and industrial wire feeder, pairing with wire strippers to process enameled wires and insulated wires. As part of automatic payoff system configurations, it ensures uniform tension and speed during feeding, avoiding wire damage and ensuring precise stripping—essential for component performance. It adapts to cable reel payoff system setups, supporting the diverse reel sizes used in component production. Automatic payoff system factory and wire unwinder equipment manufacturer design it to meet the strict precision requirements of this field, while cable payoff equipment exporter often include it in their wire and cable machinery portfolios for global markets.

3. Electronics and Electrical Appliance Production Lines

For manufacturing household appliances (e.g., refrigerators, washing machines), consumer electronics (e.g., phones, computers), and power tools, it acts as reliable wire feeding equipment and cable feeding system. Paired with wire strippers, it handles internal wiring processing—providing consistent wire feeding for stripping and terminal crimping. It serves as a compact alternative to bulkier pneumatic payoff stand options, with adaptive speed control that syncs perfectly with stripper operations. As part of wire and cable machinery setups in electronics workshops, it integrates into wire handling automation line upgrades, reducing manual errors and boosting efficiency. Wire payoff stand supplier often promote it to electronics factories for its easy installation and compatibility with small workshop spaces.

4. Industrial Automation and Equipment Manufacturing

In building automated production lines, robotic arms, and control cabinets, it works as a key automatic cable feeding system and wire extrusion line payoff (for pre-processing wires), pairing with wire strippers to process control wires and power cables. It ensures stable wire feeding for precise stripping, which is vital for the reliability of automation equipment. As a trusted industrial cable payoff equipment, it is sourced by automation equipment manufacturers who value its role in wire handling automation line setups. Cable production line payoff stand variants are also used in pre-wire processing stages, while wire and cable machinery integrators often include it in custom solutions for clients. It is a sought-after product among cable payoff equipment supplier and automatic payoff system factory catering to the industrial automation sector.
