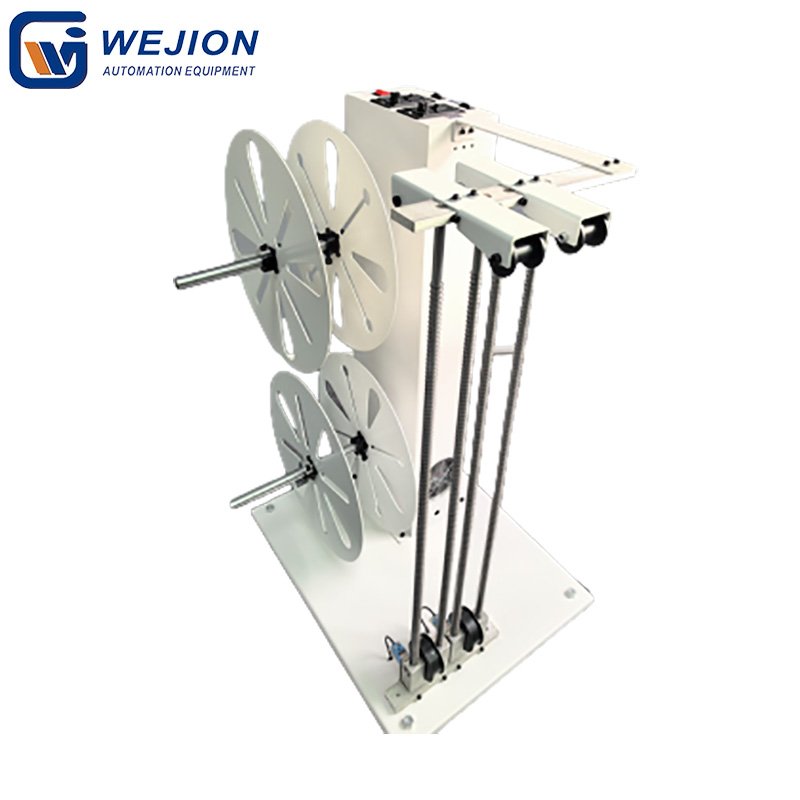

CP-D001 max. load 20kg double-wire creel stand wire feeder

This feeding machine is capable of automatic induction and automatic braking, and is suitable for fully automatic terminal crimping machines, computerized wire strippers, and soldering machines.

Model CP-D001 Category Feeder / Collector Tags Cable prefeeder, wire feeder machine, Wire feeding

Description

Flexible Operation：Supports dual-line or single-line pay-off, integrates with wire feeding.
Smart Control：10-speed settings, automatic induction braking for safety.
Powerful Performance：120W dual motors with imported wheels, max speed 1m/s.
Wide Compatibility：Loads up to 20kg, fits wires ≤6.0mm, customizable pay-off width.
Compact Design：220V power, dimensions 920×650×950mm, easy for industrial use.

Technical Data

Model	CP-D001
Dimensions	920650950 mm
Motor	120W, dual motors with imported European wheels
Function	Simultaneous or separate pay-off; compatible with wire feeding
Speed Gears	10 gears
Features	Automatic induction with braking
Max. Load Capacity	20 kg
Max. Speed	1 meter per second
Wire Diameter	≤6.0 mm
Max. Pay-off Width	Customizable upon request
Reel Diameter	– Max. 500 mm
Reel Diameter	– 500 mm reel: fits 120–400 mm inner diameter; 120–300 mm for 400 mm reel
Reel Width	≤200 mm
Reel Weight	≤20 kg
Storage Length	~3.5 m (with wheels)
Power Supply	220V, 50/60Hz
