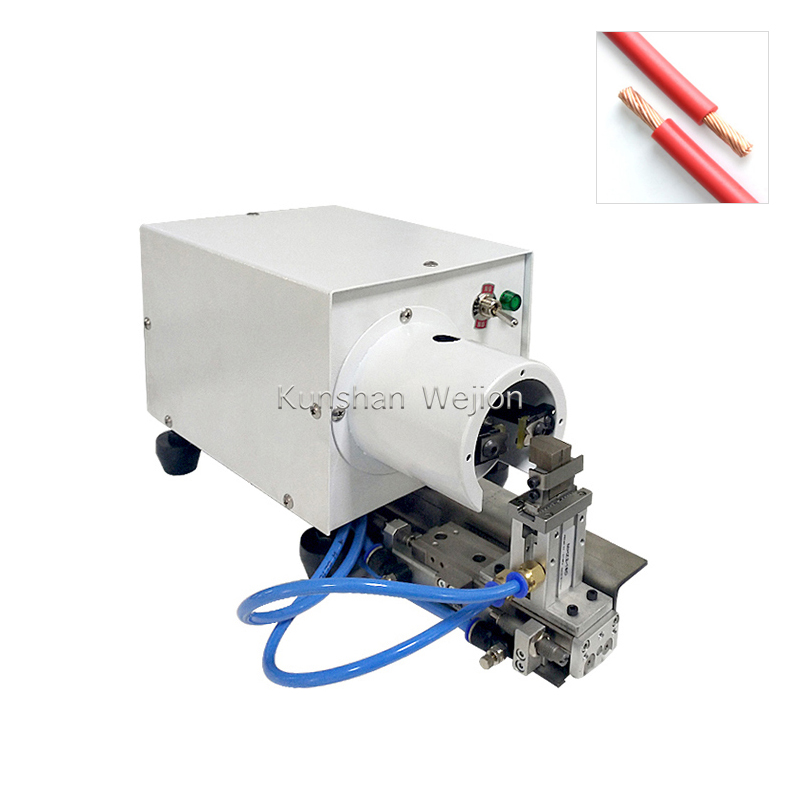

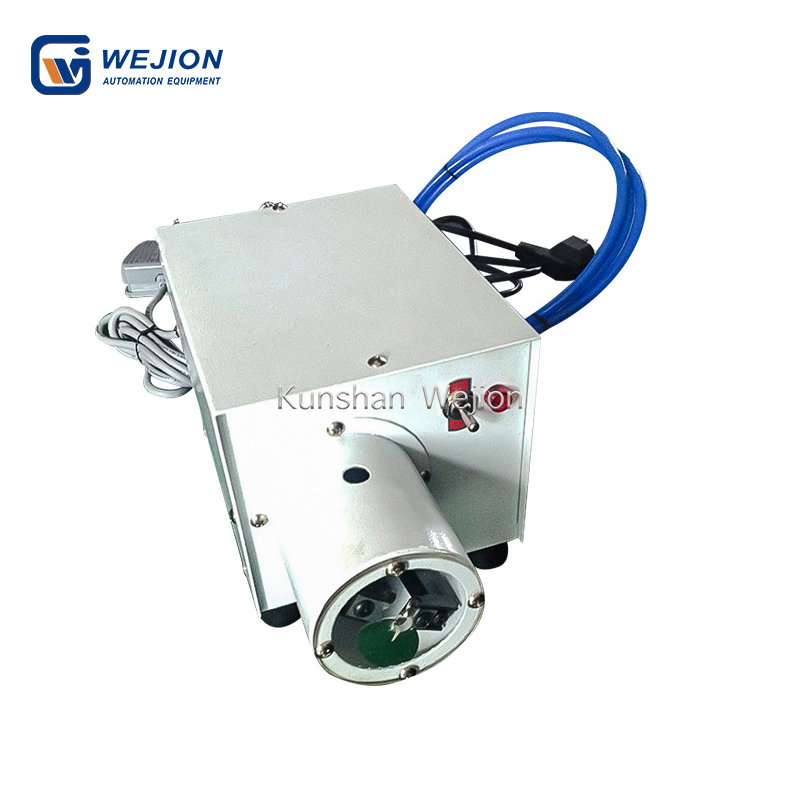

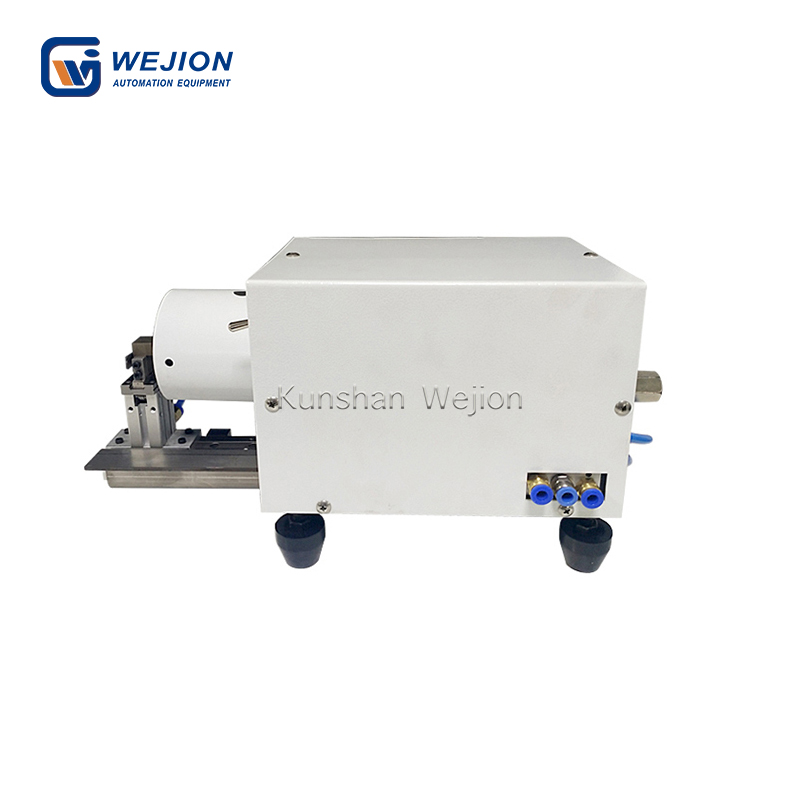

S-NX01 Semi-automatic wire stripping twisting machine

S-NX01 is a semi-automatic pneumatic machine combines stripping and twisting, streamlining wire processing to save time and labor.​With reliable pneumatic power, it strips wires precisely without damage, and its twisting function neatly bundles cores. User-friendly controls and adjustable settings fit various wire sizes, while durable build ensures long-term use.​A cost-efficient choice, it delivers professional results, perfect for workshops seeking higher productivity and quality.

Model S-NX01 Category Tags , , ,

Description

Description：

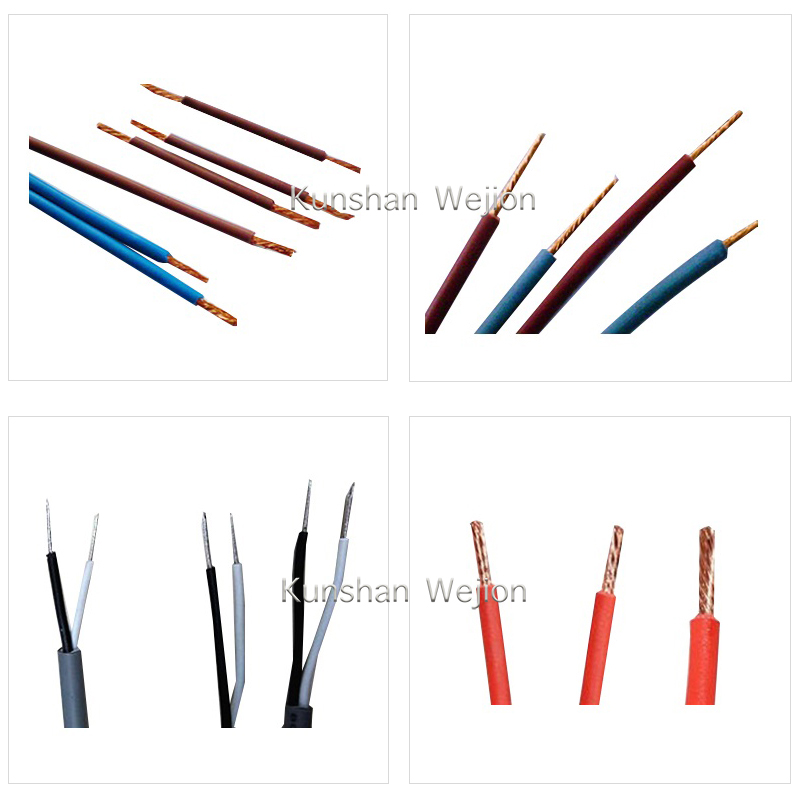

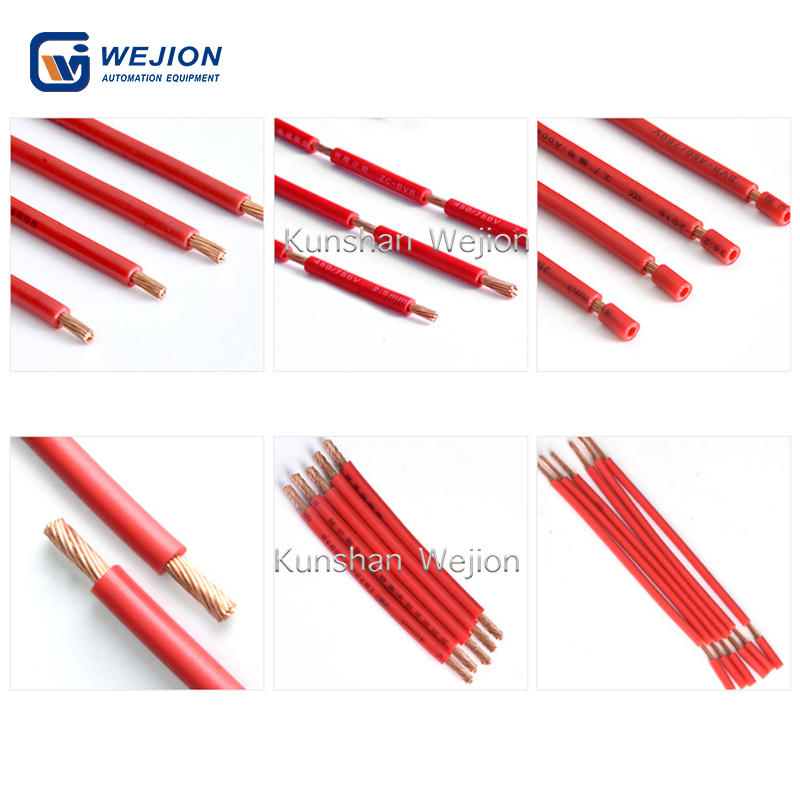

S-NX01 wire stripping and twisting machine is widely used for processing inner multi-cores of jacket cables, you only need to insert the wire head into the rotary blade and pull it out quickly, then the wire will be stripped and twisted automatically, different wire size need different suitable blade.
This machine adopts electric foot switch control, abandons heavy chain pedals, reduces the labor intensity of workers’ efficiency, is light and easy to operate, has a very short line design, can be peeled at both ends, and can realize basic functions such as automatic peeling and cutting.
The twisting device can twist the electronic wire, eliminating the need for manual twisting, and greatly improving the production efficiency.
Features：
1.Using electric pedal,improve efficiency
2.Double blades stripping,save cost and easier blade changing
3.Less consumed power
4.Tighter wire twisting

Technical Data

Name stripping and twisting machine
Model S-NX01
Air Source 6KG
Strip and Twist Length 3-45MM
Power Supply 220V (50HZ)
Power 30W
Suitable Wire Types Power Line,Electronic Wire,Multicore Wire
Length Requirement ＞5mm
Weight 12KG

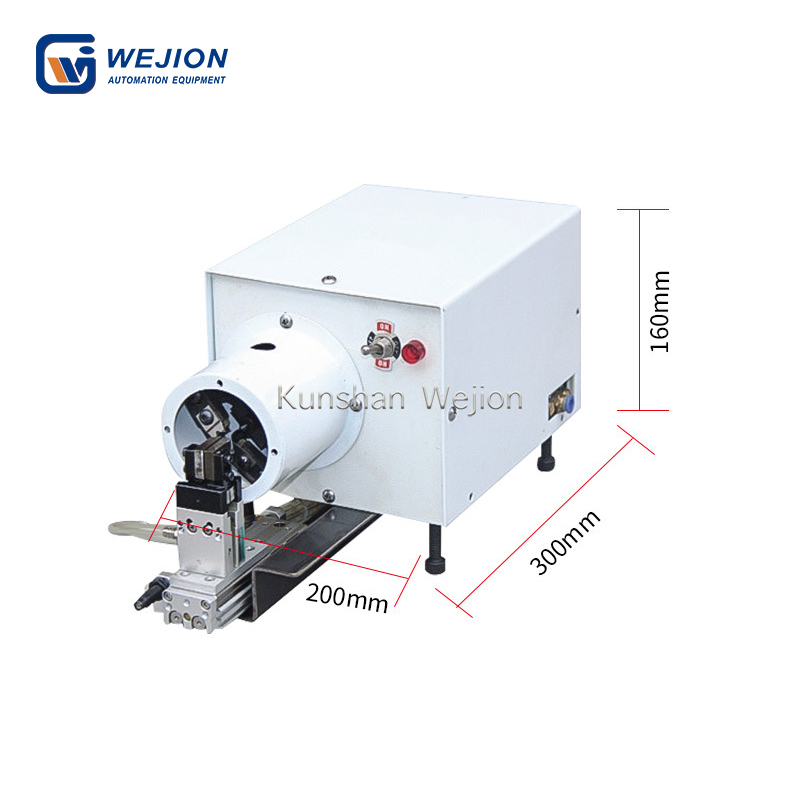

Machine Size 320*180*170mm

Additional information

Description

1. Electronics Manufacturing​

In the electronics manufacturing industry, where precision and consistency are paramount, the semi-automatic wire stripping and twisting machine plays a crucial role. It is extensively used in the production of circuit boards, chargers, and electronic connectors. For instance, when manufacturing USB chargers, the machine accurately strips the insulation from fine wires and twists the bare conductors together, ensuring a secure electrical connection. This process not only enhances the efficiency of the production line but also reduces the risk of human error, leading to higher-quality products with fewer defects. It can handle a variety of wire gauges commonly used in electronics, from ultra-thin wires in microchips to slightly thicker ones in power supply units.
​

2. Automotive Industry​

The automotive sector relies on a vast network of electrical systems, and the semi-automatic stripping and twisting machine is indispensable for wire harness assembly. In vehicle manufacturing, it is used to process wires for components such as headlights, taillights, ignition systems, and electric windows. The machine’s ability to handle multi-core wires efficiently is particularly useful here. For example, when creating a wire harness for a car’s dashboard, it can strip the outer sheath and inner insulation of multiple wires simultaneously and then twist the individual cores, saving significant time compared to manual operations. Its durability and precision also make it suitable for the harsh automotive production environment, where it must withstand continuous use and vibrations.
​

3. Home Appliance Production​

From refrigerators and washing machines to air conditioners and televisions, home appliance manufacturers benefit greatly from the use of semi-automatic wire stripping and twisting machines. In the production of these appliances, numerous wires need to be processed for functions like power supply, control systems, and sensor connections. For a refrigerator, the machine can strip and twist wires for the compressor, lighting, and temperature control circuits. The adjustable settings of the machine allow manufacturers to handle different wire types and sizes used in various parts of the appliance, ensuring consistent and reliable electrical connections throughout the product. This helps improve the overall performance and lifespan of home appliances.
​

4. Telecommunications Equipment​

In the telecommunications industry, where high-speed data transmission and reliable connectivity are essential, the semi-automatic wire stripping and twisting machine is employed for processing wires in routers, modems, and communication cables. When manufacturing fiber optic connectors that also contain electrical wires for power and control signals, the machine carefully strips the insulation from the wires and twists them together to form a stable electrical connection. This precise operation is vital for maintaining the integrity of the telecommunications equipment, ensuring smooth data flow and minimizing signal interference. It can also handle the unique wire configurations and materials used in modern telecommunications, such as shielded wires and coaxial cables.
​

5. Lighting Fixture Manufacturing​

For companies involved in lighting fixture production, the semi-automatic wire stripping and twisting machine simplifies the process of wiring bulbs, LED strips, and other lighting components. Whether it’s a chandelier, a ceiling light, or a wall sconce, the machine can quickly and accurately strip the wires and twist them to connect the light source to the power supply. This is especially important for large-scale production, as it enables manufacturers to produce lighting fixtures at a faster pace while maintaining quality. The machine’s versatility also allows it to work with different types of wires, including those with heat-resistant insulation for high-temperature lighting applications.
​

6. Electrical Equipment Assembly​

In the assembly of electrical equipment like generators, transformers, and electrical panels, the semi-automatic wire stripping and twisting machine is used to prepare wires for connections. For an electrical panel, it strips the insulation from the wires that will be connected to circuit breakers, switches, and outlets and twists the bare ends to ensure a tight connection. This reduces the risk of loose connections, which can lead to electrical failures or safety hazards. The machine’s ability to handle heavy-duty wires commonly used in electrical equipment further enhances its value in this application scenario, making it an essential tool for ensuring the reliable operation of electrical systems.

Technical Data

If you wish to have the datasheet of this or other products, you can let us know here: CONTACT

Or email to sales@ksweijiang.com, we will send you the machine introduction.

Get Details & Price Now

If you hope to inquiry just this product, please send a message here. If you hope to inquiry several products, please Add To Quote, quote all products on the Request Quote page.

WEJION will send quotes back to you ASAP : ）
