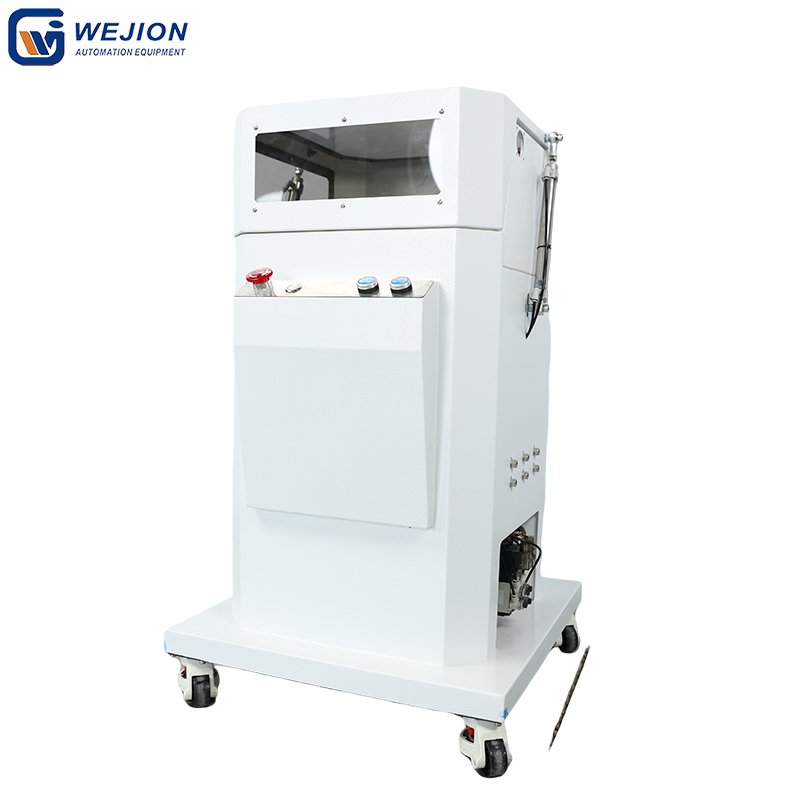

The CS-D380 Cable Winding Machine is a compact and efficient wire winding solution designed for various wire processing and cable manufacturing applications. It works perfectly together with a wire stripping machine to automate cutting, stripping, and winding of electrical wires and flexible cables.
Main Features:
Designed for electric wires, cables, and wire harnesses in automotive, electronics, and industrial fields.
High-efficiency wire coiling and winding system ensures neat, uniform, and consistent coils.
Can operate in main-machine follow mode or as a standalone automatic wire coiler.
Equipped with servo-driven control for smooth, stable, and precise winding performance.
Compact structure, easy integration into cable harness production lines or wire processing systems.
Suitable for wire and cable packaging, assembly, and automation applications.
Improves production efficiency and reduces manual handling in wire winding and stripping processes.
This automatic cable winding machine provides a reliable and flexible solution for modern wire processing factories, ensuring stable performance, high productivity, and professional coil quality
| Model | CS-D380 |
| Display | Digital tube display |
| Function | Cable winding and coiling |
| Applicable Wire Type | Electric wires, cables, etc. |
| Control Mode | Main machine follow control (or standalone operation) |

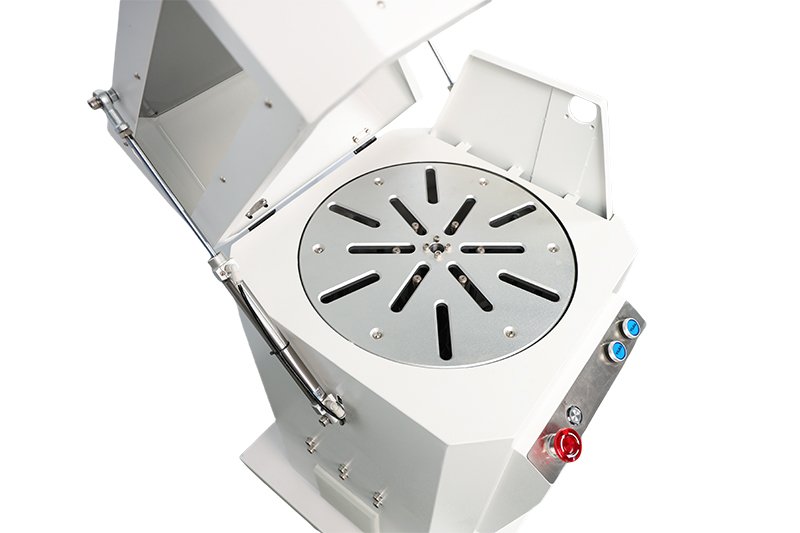

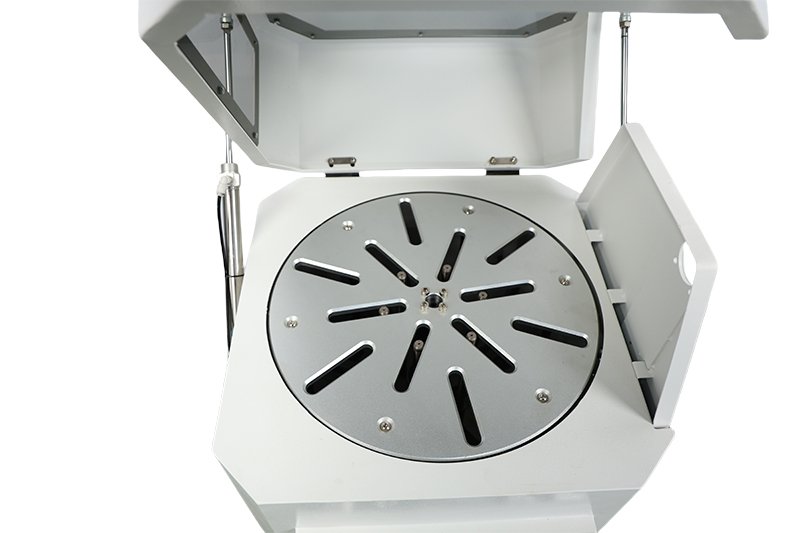

| Reel Diameter | 380 mm |
| Coiling Diameter | 200–360 mm |
| Coiling Speed | 1.5 m/s |
| Drive System | Servo motor |
| Working Mode | Single cycle |
| Completion Detection | None |

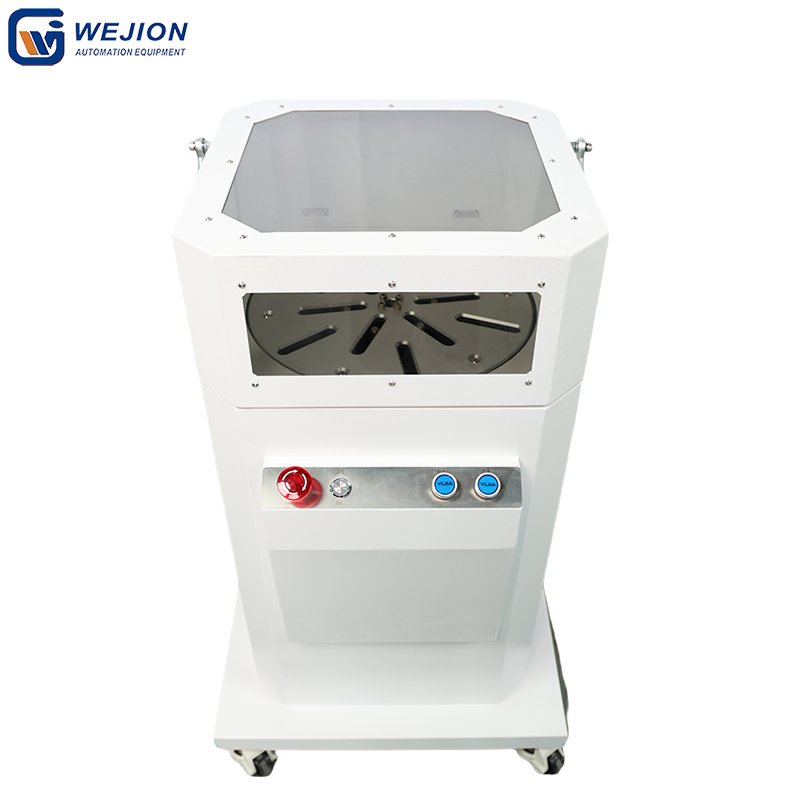

| Safety Device | Pneumatic safety door |
| Dimensions | 570*570*1000 mm |
Wire winding machines are widely used in modern wire processing and cable manufacturing industries. These machines are commonly integrated with wire stripping machines to form a fully automated wire cutting, stripping, and winding solution. They are ideal for handling electrical wires, cables, and conductors after insulation removal, providing efficient and accurate cable coiling for further assembly or packaging.
In the automotive industry, wire winding machines are essential for wiring harness production in cars, motorcycles, and electric vehicles, where consistent wire coiling and cable organization improve assembly efficiency. In electronics and appliance manufacturing, they are used to wind power cords, signal cables, and connector wires for products like washing machines, refrigerators, and lighting systems.
The machines are also widely used in telecommunication cable production, such as LAN cables, coaxial cables, and fiber optic cables, as well as in industrial automation, control panels, and robotics wiring. In renewable energy applications, they efficiently coil and organize solar cables and battery pack wires. For custom cable assembly workshops, an automatic wire winding machine saves labor and ensures neat, uniform coils ready for delivery.
By combining a wire winding machine with a wire cutting and stripping unit, manufacturers achieve higher productivity, stable quality, and reduced manual work. This integrated wire winding and stripping system is a reliable solution for any cable harness production line or electrical wire processing factory.
