S-2017C Universal blades wire stripping machine for wire processing industry

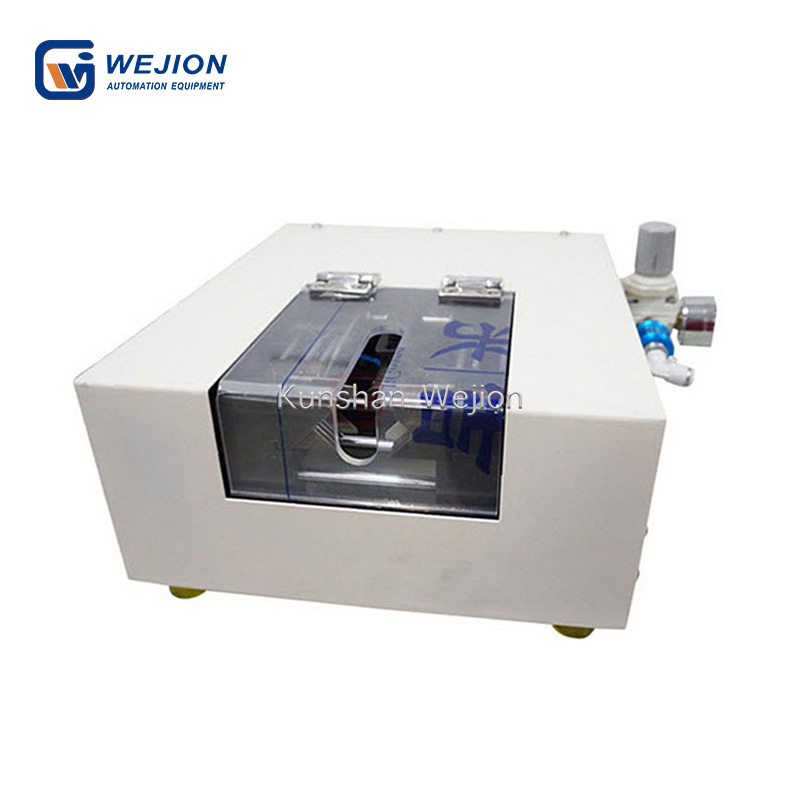

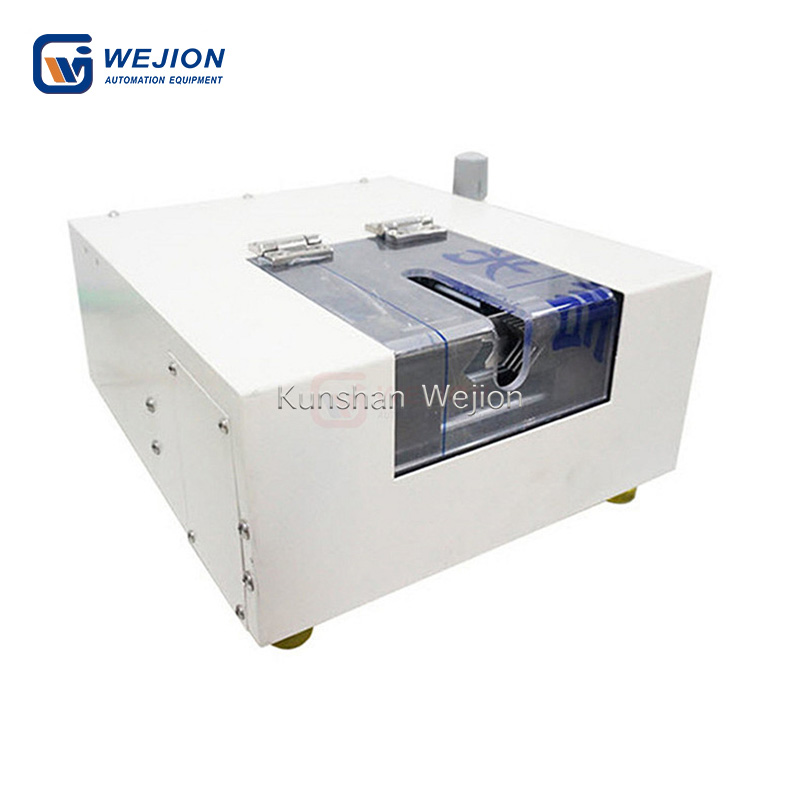

S-2017C pneumatic stripping machine is an efficient stripping equipment designed for single-core cables. It adopts pneumatic control system and is suitable for processing electronic wires, power sheath wires, data wires, etc. of various materials. The equipment realizes the stripping of cables of different wire diameters through pneumatic control and electric adjustment functions. It has the characteristics of high efficiency and precision, simple and safe operation, and is widely used in electronics, communications, power and other industries.

Function:
1. Pneumatic control system:

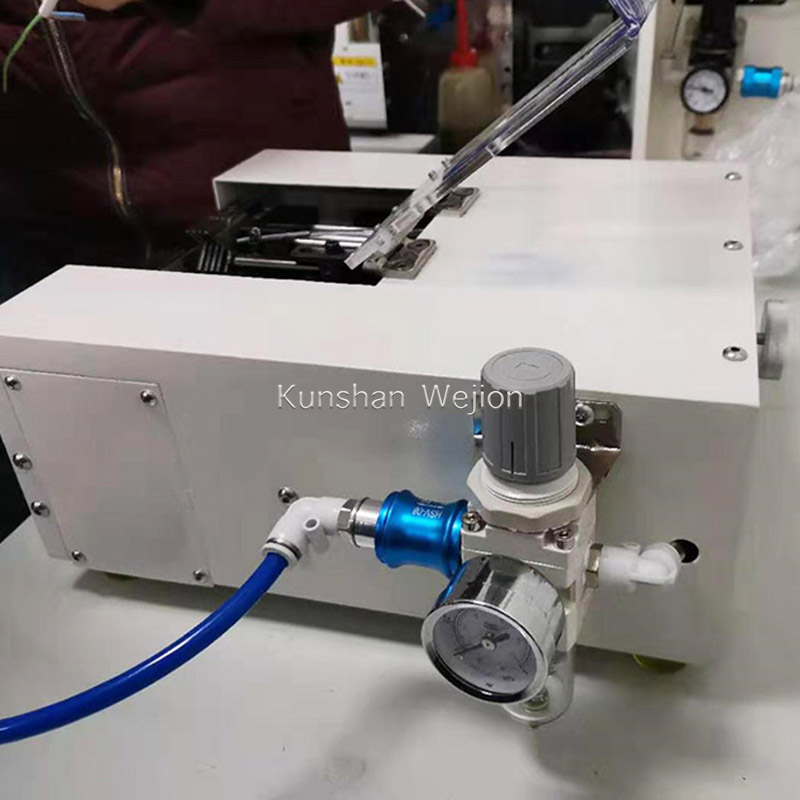

* Pneumatic control: The equipment needs to be connected to the air source (0.5-0.8 MPa) and power supply, and is powered by the pneumatic control system. It is simple to start and can be quickly put into use by connecting the air source and power supply.
* The matching small air pump can provide a stable air source to ensure the stable operation of the equipment.
2. Adapt to a variety of wire diameters:
* Dedicated to single-core cables: This equipment is mainly used for stripping single-core cables. The applicable wire range is 2.5 – 35 mm² (AWG 2-14), which is very suitable for processing single-core cables such as power lines, electronic wires, and communication lines.

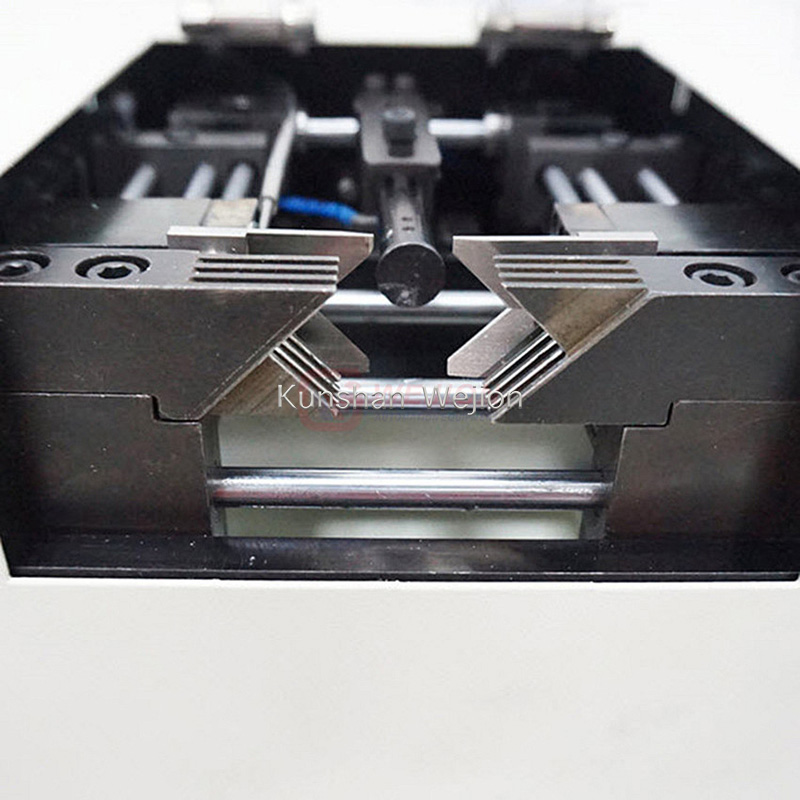

*No need to change the blade: The specially designed blade allows the device to be compatible with wires of different wire diameters without changing the blade, suitable for cables from 2.5mm² to 35mm².
*Automatic adjustment of blade distance: The device is equipped with an elastic adjustable clamp, which can automatically adjust the blade distance according to the different wire materials, ensuring that cables of different wire diameters can be adapted and stripped smoothly.
3. Easy fine-tuning and flexible control:
*Cutting depth adjustment: The cutting depth (blade value) can be adjusted by a simple fine-tuning knob, which is easy to master and adapt to the needs of different cables.
*Stripping length adjustment: The stripping length can be adjusted from 2mm to 30mm, which can be adjusted according to actual needs to meet diverse application needs.
*Full stripping and half stripping: Supports full stripping and half stripping modes, and users can choose the appropriate stripping method according to the requirements of the cable.
4. Efficient and safe operation:
*The operation process is simple and has a high safety design, avoiding the risks of excessive or incorrect operation. Suitable for fast cable processing on the production line.

Features:
1. Automatic adjustment of knife distance:
* Elastic adjustable clamp: adapt to cables of different wire diameters, no need to manually change the knife. The equipment automatically adjusts the knife distance through the clamp to ensure the consistency and accuracy of cable stripping.
2. Simple adjustment mechanism:
* Adjust the cutting depth through the fine-tuning knob to ensure that the depth and length of each stripping can be accurately controlled, and the operation is simple and efficient.
3. High adaptability:

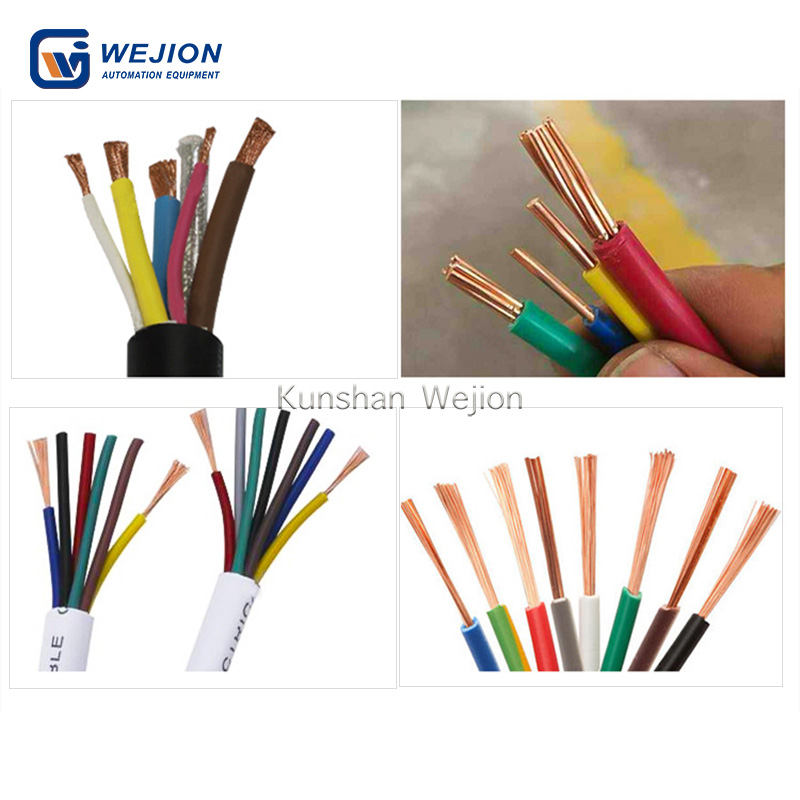

* This machine can quickly adapt to cables of different materials and wire diameters, especially suitable for the processing of electronic wires, power sheath wires, data cables, etc., and is widely used in various production environments.
4. Safety design:
* The equipment has high safety, prevents operators from operating incorrectly and brings danger, and runs stably to ensure long-term continuous operation without interruption.
5. Save time and cost:
* No need to change the knife design, which reduces the time and cost of equipment maintenance and knife replacement, and improves production efficiency.

Application areas:
1. Electronics industry:
* Suitable for stripping of various electronic wires, especially in the assembly of electronic components, to ensure the reliability and stability of electrical connections.
2. Power industry:
* Used for stripping power lines and control lines, especially for cable processing in power control cabinets and power distribution equipment.
3. Communications industry:
* Suitable for various cables in the communications industry, such as network cables, telephone lines, etc., to ensure the accuracy and efficiency of the stripping process.
4. Automobile industry:
* In the production of automobile wiring harnesses, it can accurately strip single-core cables to ensure the safety and stability of the automobile electrical system.
5. Home appliance industry:
* Suitable for the processing of home appliance wires to ensure the electrical connection quality of home appliance products.
