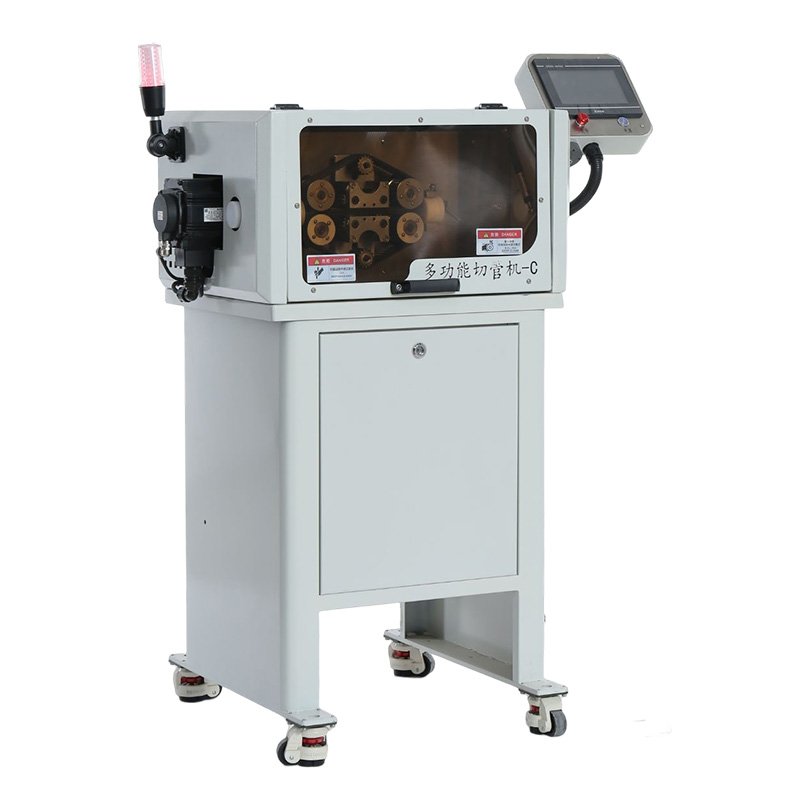

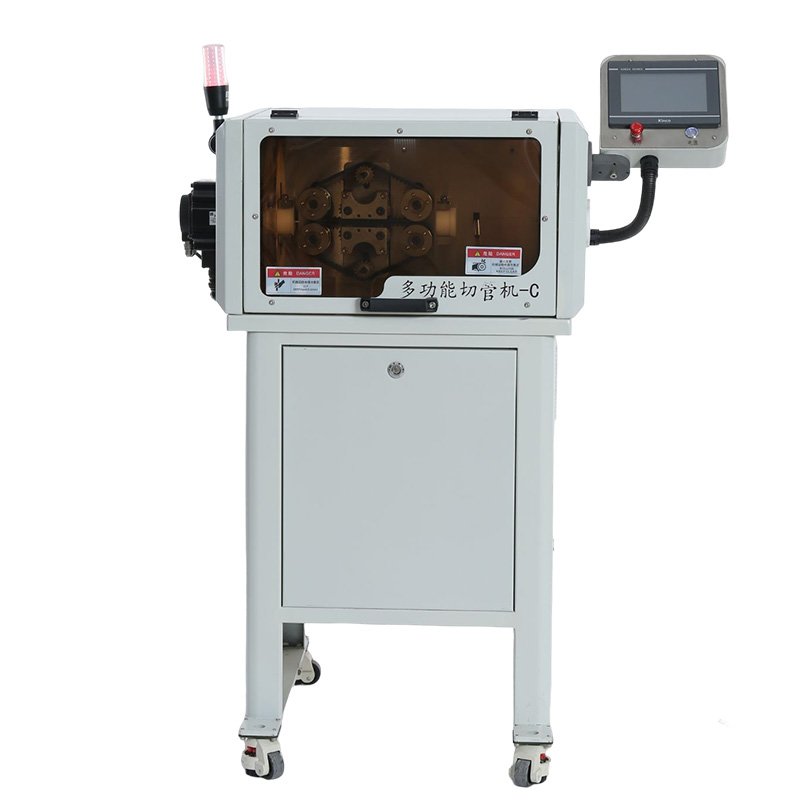

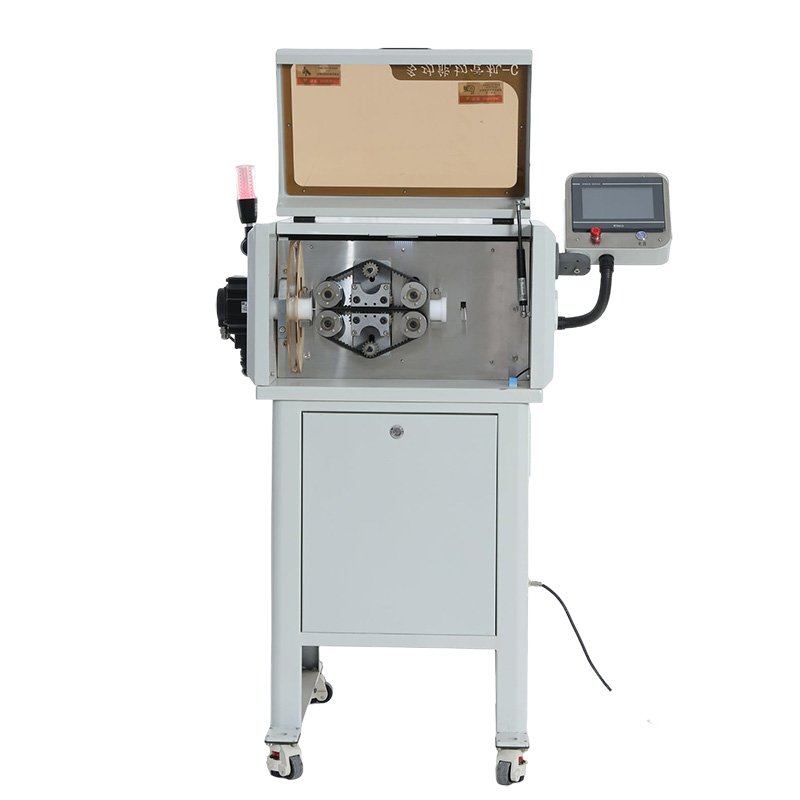

PC-A30-C multi-functional plastic pipe cutting machine

Model CP-A30-B-1 Category Pipe Cutting Machine Tag Tube cutting machine

Description

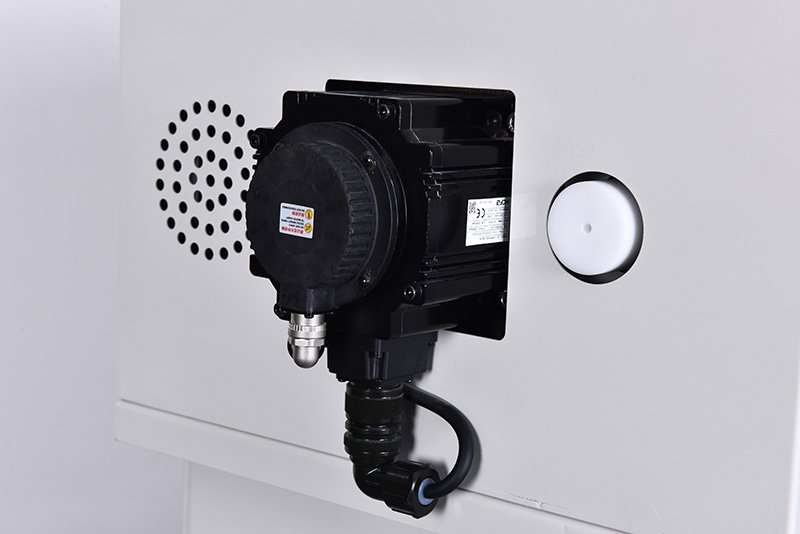

High-Speed Precision Cutting: The Type C multifunctional pipe cutting machine, powered by a 2.0KW servo motor, enables high-speed cutting of ø1-ø36mm flexible hoses at a rate of 50-400 pieces per minute, with a length error of ±0.2-0.5% depending on the material, ensuring both efficiency and accuracy.
Flexible Feeding Configuration: It features a 57 stepper motor for track feeding, with an optional upgrade to a servo motor (subject to price adjustment), allowing users to choose the setup that best suits their cutting needs.

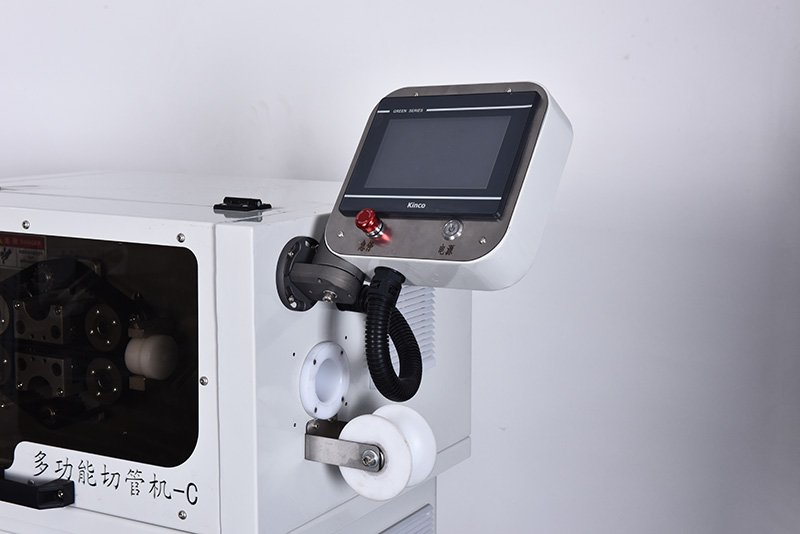

User-Friendly Operation: Controlled by a motion control board integrated with a human-machine interface (HMI), the machine simplifies the cutting process, making it accessible for operators of varying skill levels.
Cost-Effective and Versatile: Utilizing standard 18mm art knife blades, it reduces maintenance costs. Its compatibility with a wide range of flexible hoses, along with the 1800W power output, makes it suitable for diverse cutting applications.
Compact and Portable: With dimensions of 850×520×1200mm and weighing only 150Kg, the machine is space-saving and easy to relocate, ideal for workshops with limited space.

Technical Data

Model	PC-A30-C
Control system	Motion control board with HMI
Cutting method	Motor-driven cutting
Cutter power	2.0KW servo motor
Feeding motor	57 stepper motor (servo motor optional, price difference applicable)

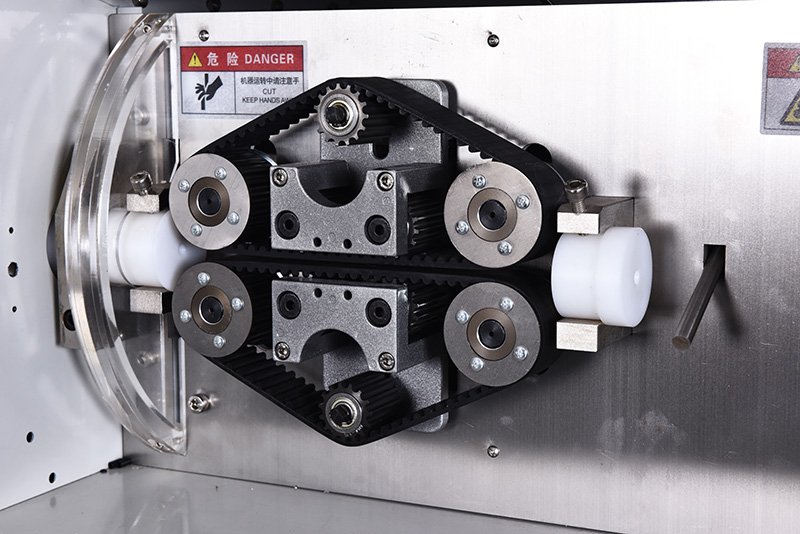

Feeding mode	Track feeding
Blade type	Standard 18mm art knife blade
Power supply	220V 50-60HZ
Power	1800W
Cutting diameter	ø1-36mm flexible hoses
Length tolerance	±0.2-0.5% (depending on pipe material)
Cutting speed	50-400 pcs/min (depending on length)
Dimensions	8552120cm
Weight	150Kg
