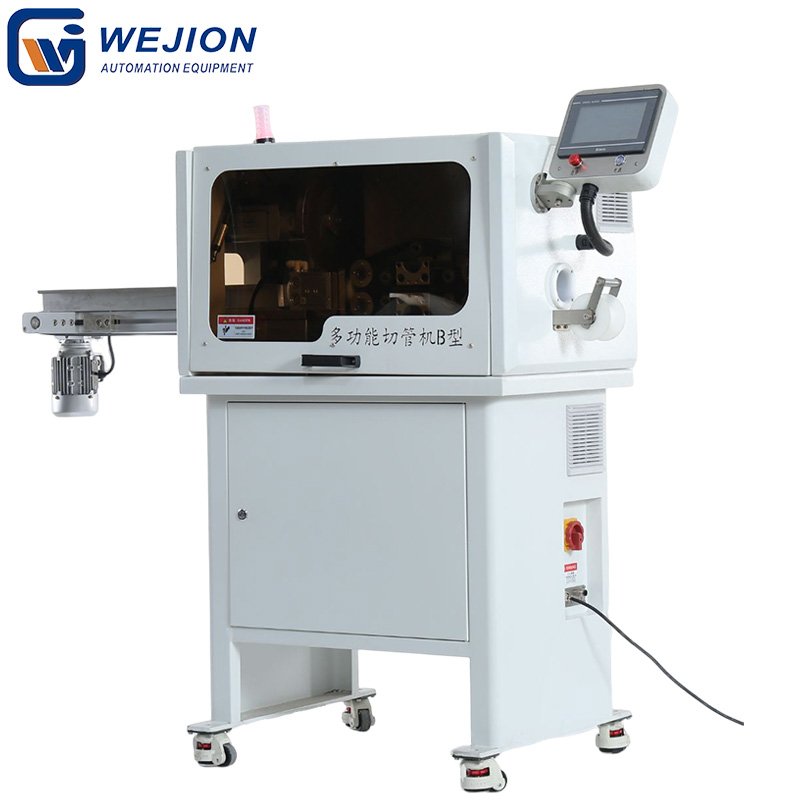

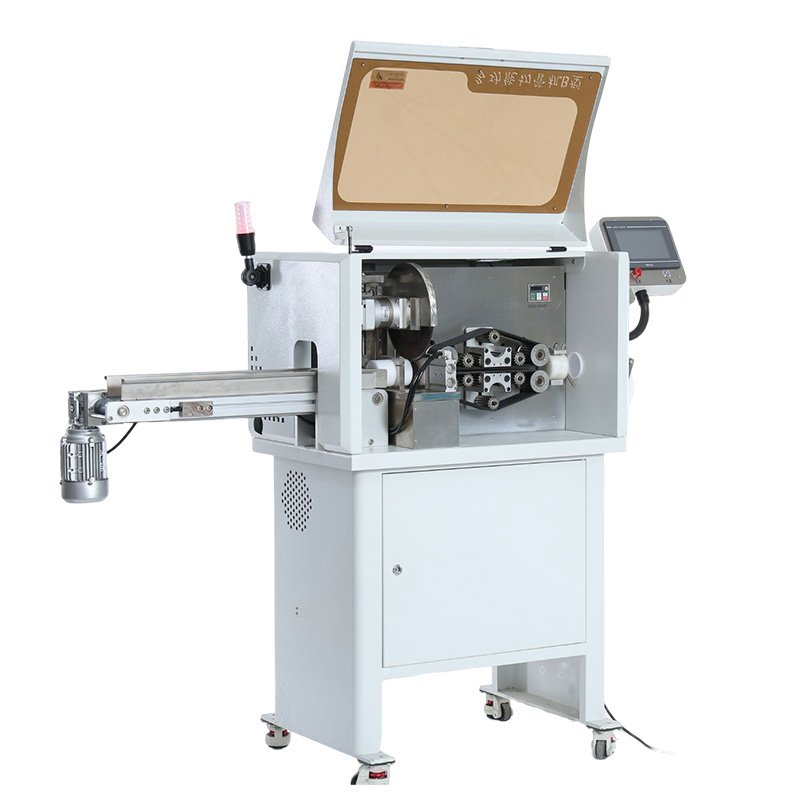

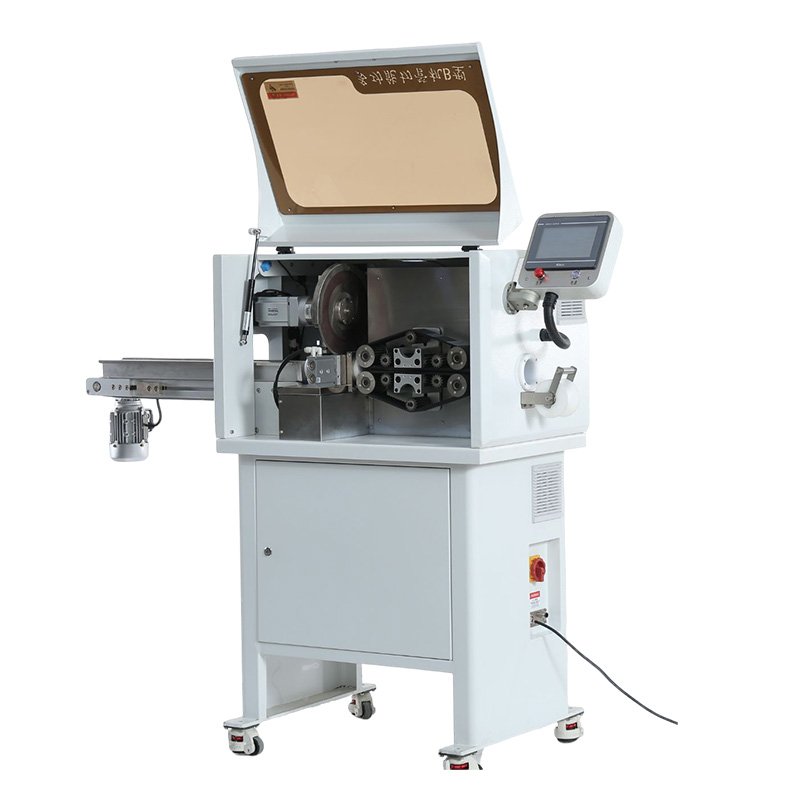

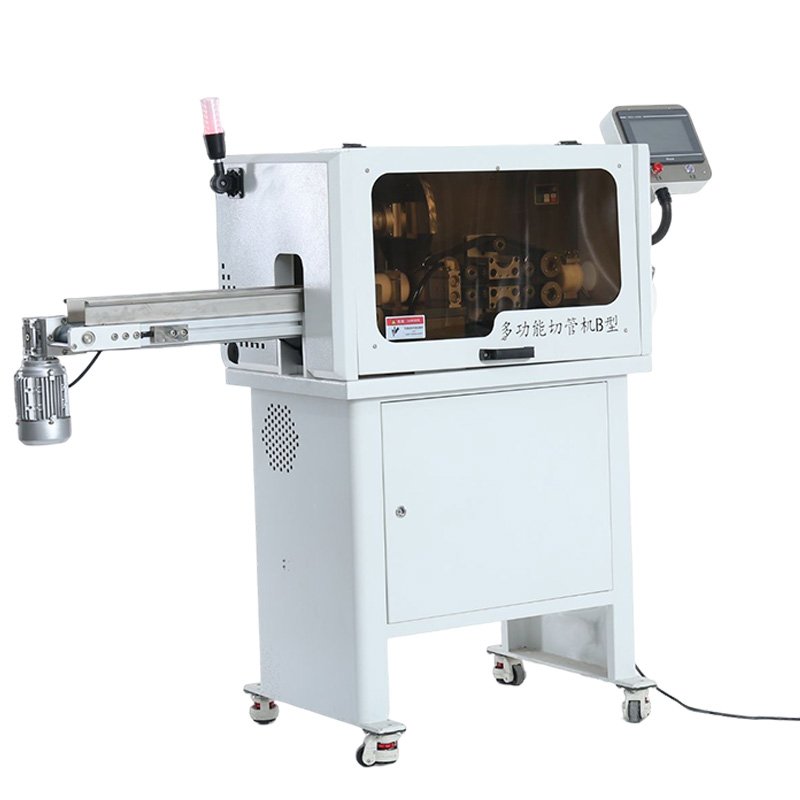

PC-A30-B multi-functional fully automatic metal pipe cut machine

Name: PC-A30-B multi-functional fully automatic metal pipe cut machine - Wire Processing
SKU: CP-A30-B
Availability: InStock

The CP-A30-B is engineered for thin-walled metal corrugated pipes and other materials containing thin-gauge steel.

Model CP-A30-B Category Pipe Cutting Machine Tags Metal pipe/tube cutter, Pipe cutting machine, Tube cutting machine

Description

Precision Cutting: Equipped with a rotating circular blade and digital control motor, the Type B multifunctional pipe cutting machine ensures high-precision cuts with a length tolerance of ±0.5 + L*0.002 mm for metal pipes ranging from ø1-ø45mm.
Efficient Operation: Driven by a servo motor for track feeding and featuring a 1kW cutter power, it achieves a cutting speed of 20-40 pieces per minute, optimizing productivity.
Automated Processing: The fully automated system, integrated with a motion control board and HMI, combines automatic feeding, cutting, and conveyor – belt discharge, reducing manual intervention.
Versatile Performance: Designed mainly for metal pipes, it offers multi – functional capabilities, with a 40mm cutting stroke and a total power of 2000W, suitable for various metal cutting tasks.
Reliable and Compact: Operating on 220V 50 – 60Hz power and 0.5 – 0.7MPa air pressure, this machine has a compact size of 1020×530×1300 mm and weighs about 270kg, ensuring stable performance in limited spaces.

Technical Data

Model	PC-A30-B
Control system	Motion Control Board with HMI

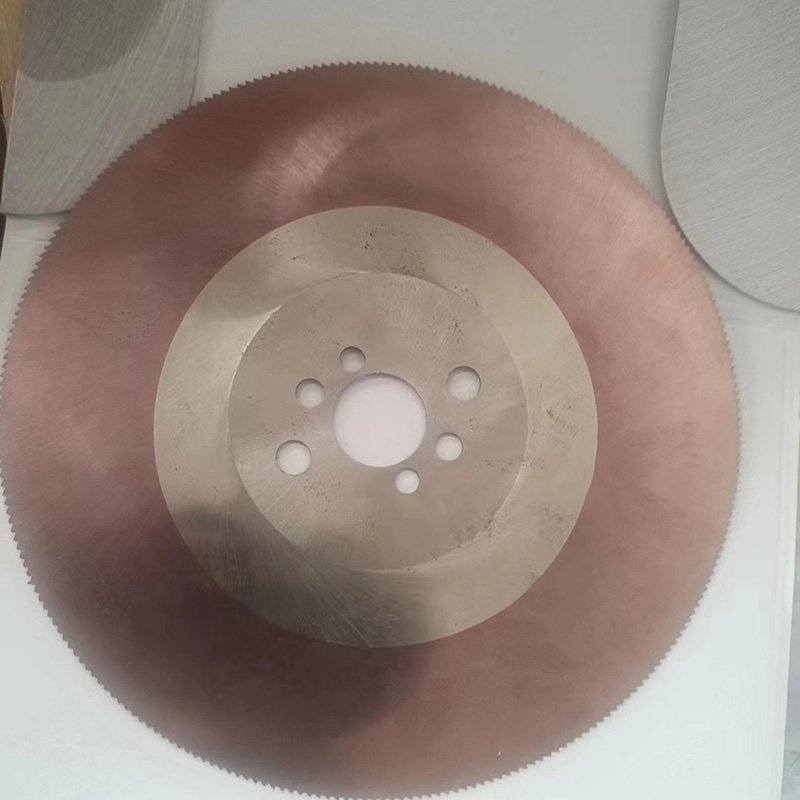

Cutting method	Rotating Circular Blade
Cutter power	1kW
Feeding motor	Servo Motor
Feeding mode	Track Feeding
Discharge mode	Conveyor Belt Output
Cutting feed mode	Digital Control Motor
Cutting stroke	40 mm
Power supply	220V 50-60Hz
Air pressure	0.5-0.7MPa
Total power	2000W
Cutting dia.	φ1-45mm
Length tolerance	±0.5 + L*0.002 mm
Cutting speed	20-40 pcs/min
Dimensions	10253130 cm (Excluding Protrusions)
Weight	270kg
