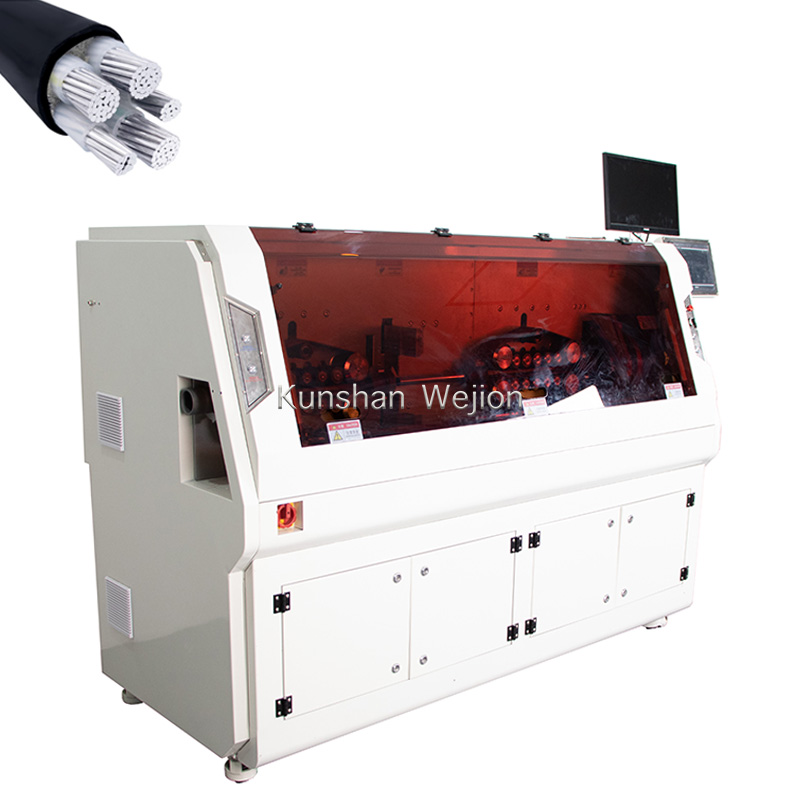

CS-8400 cable stripping machine is a heavy-duty tool designed for cutting and stripping large 400mm² cables, commonly used in high-power electrical systems. It features robust blades to cleanly slice through thick insulation, rubber, or armor without damaging copper or aluminum conductors. With adjustable depth control and automated functions, it ensures precise stripping for power distribution, renewable energy, and industrial applications. Safety features like overload protection and emergency stops enhance reliability, while integrated cutting and stripping functions improve efficiency in cable preparation.

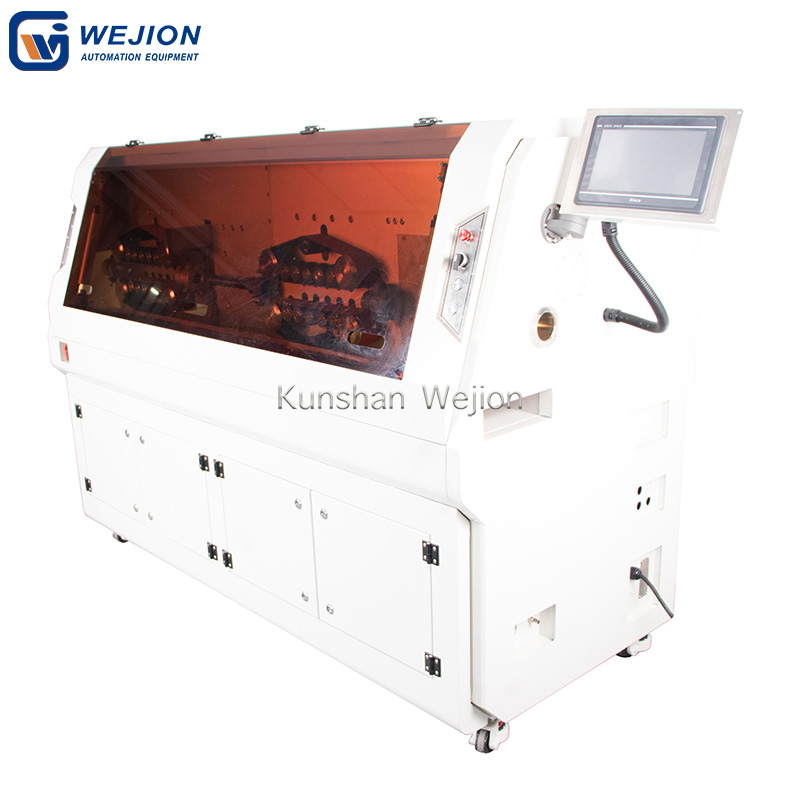

CS-8400 is an efficient, precise, safe and intelligent cable stripping equipment. It adopts servo motor and pulley wire feeding system to ensure smooth cable delivery and precise stripping. Combined with high-quality imported high-speed steel blades, it can efficiently strip the insulation layer of various types of cables without damaging the metal wire. The 16-inch true color touch screen and automatic control system make the operation simple and intuitive. The high automation and remote monitoring functions of this equipment greatly improve production efficiency and are widely used in industrial production environments for large-scale cable processing.
Functions & Features:
1. Wide range of applications
* Suitable for cables with a cross-section of 400 square millimeters, and can handle various types of cables, such as copper wire, aluminum wire, single-core, multi-core cables, etc.
* Suitable for cables of various outer diameters and different insulation thicknesses, meeting the processing needs of various cables in the harness industrial production.
2. 16-inch true color touch screen operation interface
* Equipped with a 16-inch true color touch screen, the interface is clear and concise, and the operation is more intuitive. The touch screen is large in size, which is convenient for operators to view and adjust parameters in real time.
*Users can easily set and adjust working parameters such as stripping length, depth, speed, etc. through the touch screen. The operation is flexible and convenient, reducing manual intervention.
*The touch screen provides a graphical interface to display the equipment status, production data and fault warnings in real time, which is convenient for equipment monitoring and management.
3. High-quality imported high-speed steel blades
*The imported high-speed steel blades are made of excellent material, high hardness and strong wear resistance, ensuring stability and efficiency after long-term use.
*The sharpness of the blade enables the equipment to quickly and accurately strip the insulation material of the outer layer of the cable without damaging the internal metal wire.
*The high-speed steel blade has strong corrosion resistance, adapts to the stripping needs of various cable materials, and extends the service life of the blade.
4. Servo motor drive
*Adopting servo motor drive, it has high precision and high response speed, and can accurately control the movement trajectory and running speed of the equipment.
*The servo motor can quickly adapt to the stripping requirements of different cable types, provide better stability and precision, and ensure the efficiency and consistency of the stripping process.
*Compared with traditional motors, servo motors run more smoothly, consume less energy, and have a longer service life.
5. Pulley feeding system
*The pulley feeding system can smoothly and evenly transport the cable, ensuring that the cable does not slip, knot or damage during the stripping process.
*The pulley feeding system provides flexible feeding speed adjustment to meet the processing requirements of cables of different specifications, while reducing friction during transmission and protecting the cable from damage.
*The system also has a high load capacity and can stably transmit cables with large cross-sections.
6. Efficient and accurate stripping function
*The stripping process is controlled by precise tools to ensure that the outer insulation material of the cable is accurately stripped without damaging the internal conductors.
*The stripping depth, length and other parameters can be accurately adjusted according to needs, supporting the stripping process of different cables and providing the best stripping effect.
*Supports multiple stripping modes, such as full stripping, half stripping, partial stripping, etc., which can meet different cable and processing requirements.
7. Highly automated control system
*Equipped with PLC automatic control system to ensure efficient operation of the equipment, reduce manual intervention and improve production efficiency.
*The equipment can automatically feed, peel, and return materials, and is easy to operate, greatly reducing the complexity and error rate of manual operation.
*The touch screen provides real-time production data, and the operator can view work progress, production statistics, equipment status, etc. at any time.
8. Safety protection function
*Equipped with multiple safety protection devices, such as emergency stop switch, safety cover and overload protection, to ensure the safety of operators during equipment operation.
*The equipment is equipped with a safety lock function to prevent the equipment from being accidentally started during maintenance and reduce operating risks.
| Model | CS-8400 |
| Display mode | 10-inch touch screen |
| Front stripping | Insulation: 1-1000mm |
| Back stripping | Insulation: 1-300mm |
| Conductor type | Cable PVC, guard cable. Etc. |
| Stripping range | 30-400mm2 |
| Cutting length | 10mm-99999.99mm |
| Cutting tolerance | ±0.002(L = cutting length) |
| Maximum diameter of conduit | φ15-60mm |
| cutter material | High quality imported high speed steel |
| Productivity (per hour) | 500-1000PCS/ hour |
| Driving mode | 32-wheel drive (Each group of indepedent servo driver) |
| Feeding mode | Belt driving |
| Remarks | Special cable can be customized to send sample line test |
High-Current Power Lines: Used in medium-to-high voltage power distribution (e.g., 11kV, 33kV, 66kV) due to high ampacity (500A+).
Substation Connections: Links between transformers, switchgear, and busbars in electrical substations.
Underground Cabling: Deployed in urban power networks where overhead lines are impractical.
Heavy Machinery: Supplies power to large industrial motors, compressors, and CNC machines.
Manufacturing Plants: Used in steel mills, chemical plants, and automotive factories for high-load circuits.
Mining & Oil Rigs: Powers drilling equipment, pumps, and conveyor systems in harsh environments.
Wind Farms: Connects wind turbines to transformers due to high current handling.
Solar Power Plants: Used in combiner boxes and grid-tied inverters for large-scale solar arrays.
Battery Energy Storage (BESS): High-capacity links in grid-scale battery systems.
Railway Electrification: Feeder cables for traction power (AC/DC systems in metros and high-speed rail).
Airports & Ports: Powers runway lighting, cargo handling systems, and ship-to-shore cranes.
Tunnels & Metro Systems: Ensures reliable power for lighting, ventilation, and emergency systems.
High-Rise Buildings: Main riser cables for vertical power distribution.
Data Centers: Supplies critical power to server racks and backup generators.
Shopping Malls & Hospitals: Backbone cabling for high-demand electrical loads.
Shipboard Power: Used in engine rooms and propulsion systems.
Offshore Wind Farms: Subsea cables for inter-array and export power transmission.
Temporary Power for Events: Concerts, film sets, and exhibitions requiring high-capacity feeds.
Military & Defense: Heavy-duty power for bases and mobile command centers.

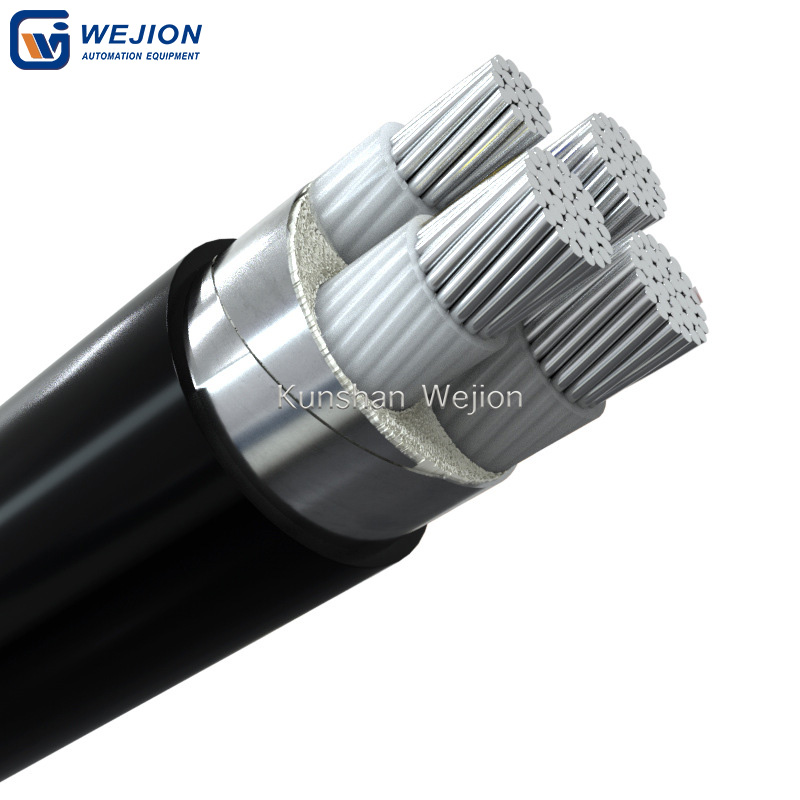

Conductor Material: Typically copper (high conductivity) or aluminum (lightweight, cost-effective).
Insulation: XLPE (cross-linked polyethylene) for heat resistance or PVC for flexibility.
Voltage Rating: Commonly 0.6/1kV (LV), 6.35/11kV (MV), or higher for HV applications.
Armoring: Steel-wire armored (SWA) for mechanical protection in harsh environments.
