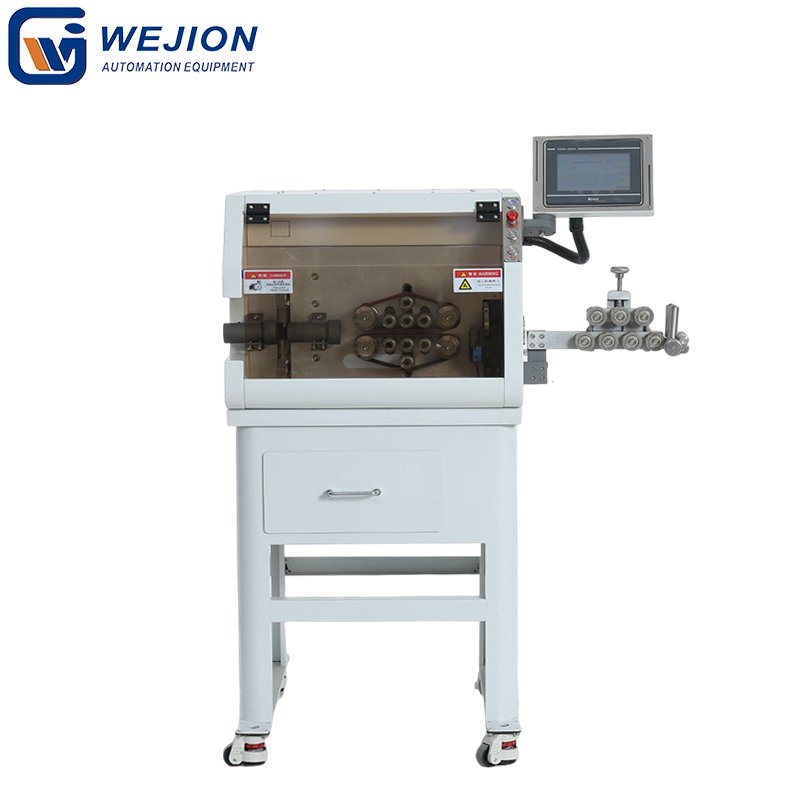

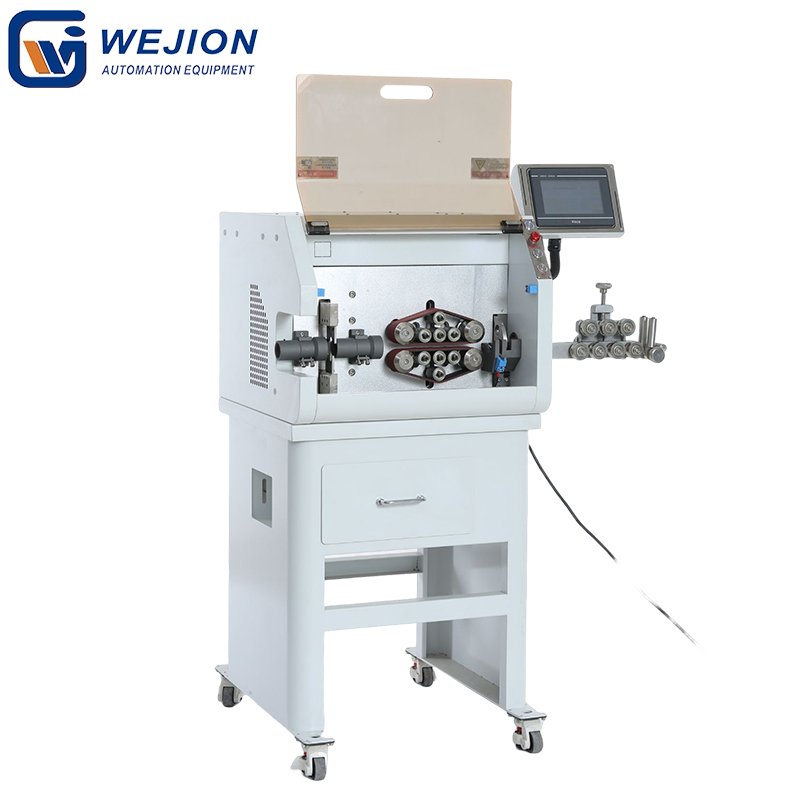

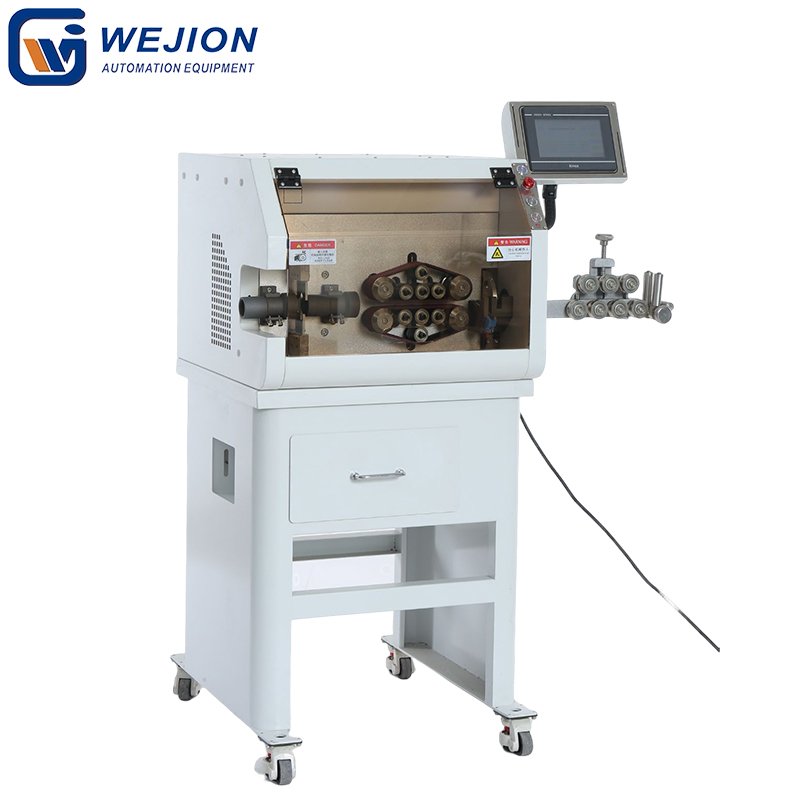

CS-8150Q max. 150kg fully automatic large cable cutting machine

Name: CS-8150Q max. 150kg fully automatic large cable cutting machine - Wire Processing
SKU: CS-8150Q
Availability: InStock

The CS-8150Q is a fully automatic cable cutting machine, suitable for cutting cable wires and multi-core wires.

Model CS-8150Q Category Cut / Strip Tags Cable cutting machine, Wire cutting machine

Description

Fully automatic feeding, positioning, and cutting of wires/cables with minimal manual intervention.
Cuts wires/cables from 1mm to 99999.99mm in length, handles cable diameters up to Φ33mm and cross-sections up to 150 mm² (customizable for larger sizes).
Cutting tolerance within 0.002*L (L = cutting length), 16-wheel belt feeding prevents indentation/scratches.
Up to 1800 cuts per hour (varies by wire size/length) for high-volume production.
Imported high-speed steel blades, servo-driven cutting mechanism (full servo upgrade optional).
Adaptable for special cables (sample testing required) and custom cutting lengths.

Technical Data

Model	CS-8150Q Cutting Machine
Display	7-inch True Color Touch Screen
Function	Fully automatic cutting and stripping for wires and cables
Wire Types	Cable, PVC, sheathed wire, etc.
Stripping Range	1-150 mm² (customizable for >150 mm²)
Cutting Length	1mm-99999.99mm
Cutting Tolerance	Within 0.002*L (L = cutting length)
Stripping Length	Front stripping: 1-800mm (wire head); Rear stripping: None (wire tail)
Max. Wire Diameter	φ33 mm
Blade Material	Imported high-speed steel
Productivity	1800 pcs/h (subject to wire length and size)
Power Source	Cutting servo, feeding stepper (full servo optional)
Wire Feeding	Belt feeding, 16-wheel drive (no indentation or scratches on cables)
Power Supply	220V/50HZ ±10%
Installed Capacity	1.6KW
Full Load Current	18A (minimum allowable current: 10A)
Air Supply	None
Special Features	1. Customizable for special wires (sample testing required)
Special Features	2. Stripping pressure, front full-stripping guide, encoder, automatic wire detection
Auxiliary Functions	Material collecting clamp, mechanical arm, wire take-up rack (use with module isolation)
Net Dimensions	900710560 mm
Packaging Dimensions	1000810760 mm

Additional information

Description

Electrical Wiring and Installation：Ideal for cutting wires and cables used in residential, commercial, and industrial electrical systems, ensuring precise lengths for efficient installation.
Electronics Manufacturing：Suited for processing cables and wires in the production of electronic devices such as smartphones, computers, and household appliances, meeting the high – precision requirements of the electronics industry.
Automotive Industry：Used to cut automotive wiring harnesses, battery cables, and other automotive – specific wires with consistent accuracy, supporting automotive assembly and maintenance.
Telecommunications：Capable of handling various communication cables, including network cables and fiber – optic cables, enabling accurate cutting for telecommunications infrastructure construction and maintenance.
Renewable Energy：Applicable in the renewable energy sector for cutting wires and cables used in solar power systems, wind turbines, and energy storage devices, ensuring reliable connections.
Cable and Wire Processing Factories：Designed for mass production scenarios in cable and wire processing plants, significantly improving production efficiency and reducing labor costs.
