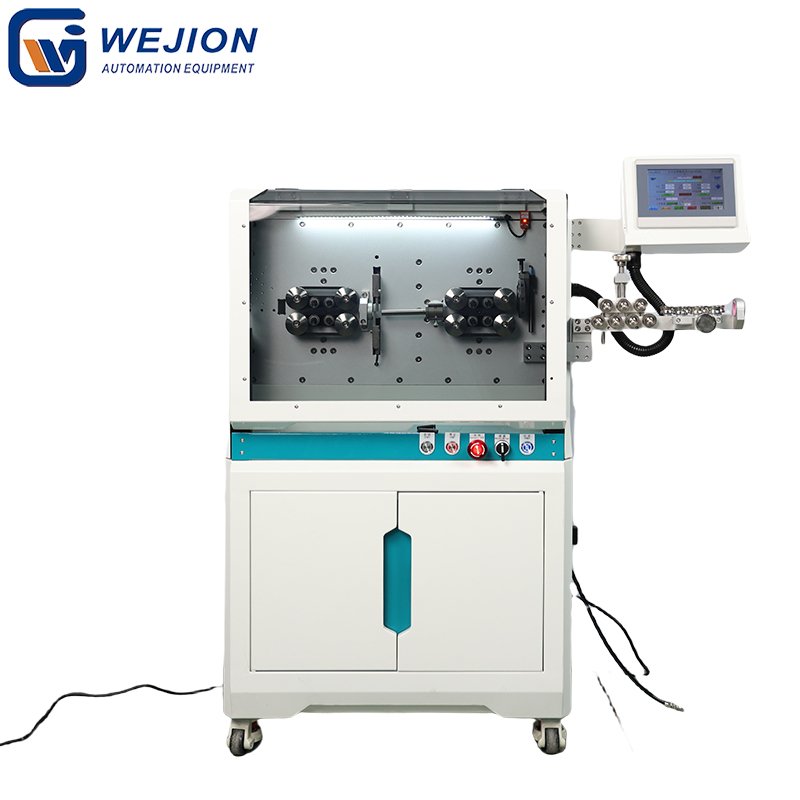

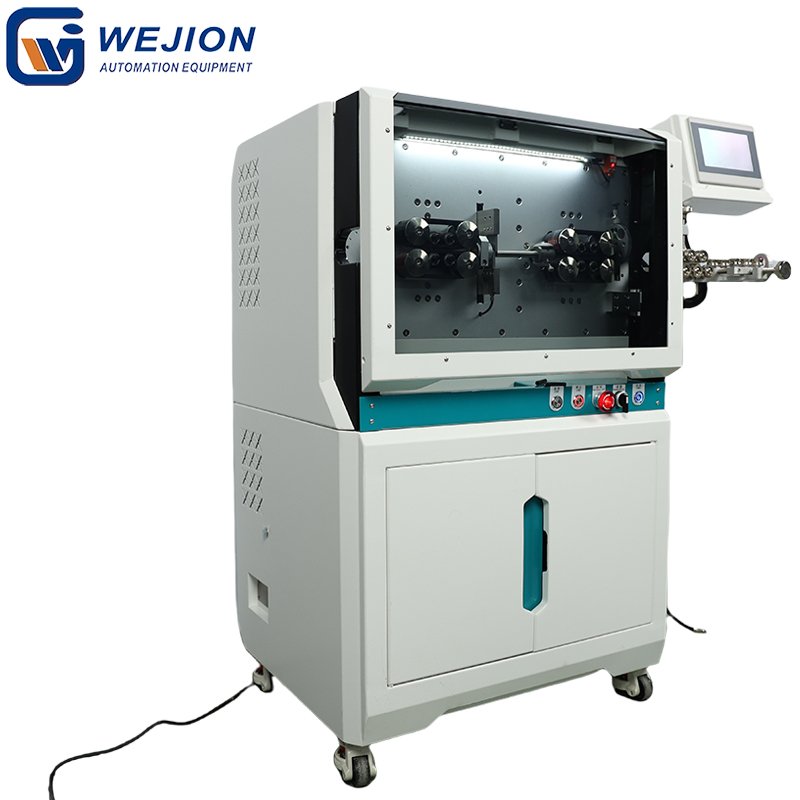

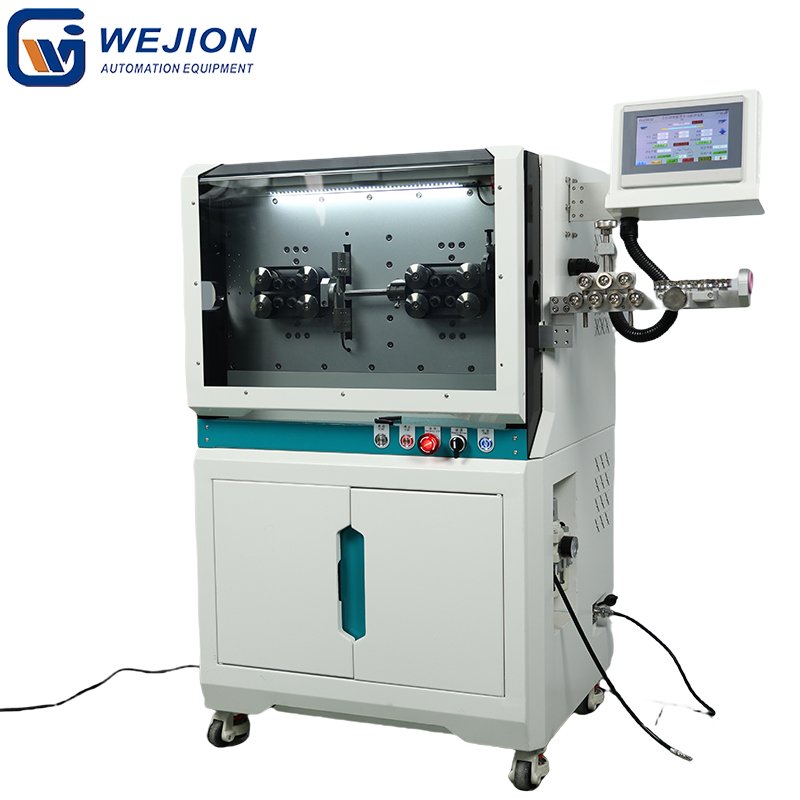

CS-3030Y Automatic Desktop Wire Cutting and Stripping Machine(0-18mm)(0.75-30mm²)

CS-3030Y is suitable for various wires, with automatic cutting, stripping (including middle), belt feeding. Features quality tools, adaptable power, user-friendly interface, modular design and customization.

Model CS-3030Y Category Cut & Strip Tags Cable stipping machine, Cut strip machine

Description

Functions

Applicable Wires: The wire stripper machine can handle single – core wires, multi – core cables, shielded cables, as well as electric wires, PVC and other materials, making it a versatile cable stripper machine and electrical cable stripping machine.

Core Operations: This automatic wire cutter and stripper, which is also an automatic wire cutting and stripping machine and a fully automatic wire cutting stripping machine, realizes fully automatic fixed – length cutting and stripping. It supports front full stripping (1 – 200mm), front half stripping (1 – 1500mm), rear full stripping (1 – 100mm) and rear half stripping (1 – 300mm), functioning well as a wire cutting & stripping machine and a wire cutting stripping machine.

Processing Parameters

Processing Range: 0.75 – 30 square (with an ultimate cutting capacity of 50 square), suitable for the operations of a cable cut and strip machine and a wire cut and strip machine.

Cutting Length: 1mm – 999999.99mm, and the cutting tolerance is within 0.002*L (L = cutting length), ensuring the precision required by an automatic wire length cutter and an automatic wire measuring and cutting machine.

Maximum Allowed Passing Diameter: Φ18.

Drive and Wire Feeding

16 – wheel drive (feeding stepping motor, tool rest servo motor), with optional servo feeding, providing stable power for the automatic wire machine.

Belt wire feeding, ensuring no indentation or scratch on the cable, with stripping and pressurizing function, which is a key feature of this strip cut machine.

Operation and Power

Digital adjustment of pressure wheel height for easy operation.

Power supply: optional AC220V 50/60Hz or 110V 50/60Hz, requiring 0.5Mpa clean air source, suitable for the pneumatic wire stripper.

Features

Efficiency and Precision: Adopting high – quality imported high – speed steel cutting tools, the productivity reaches 3500PCS/hour (depending on wire length and diameter), ensuring the processing precision of this automatic wire cutter machine and wire cutter automatic.

Easy Operation: Equipped with a 7 – inch color human – machine interface, it has a user – friendly system for intuitive operation, making it an easy – to – use auto wire stripper and auto stripping machine.

Flexible Expansion

Modular interface, convenient for connecting accessories and peripheral equipment; modular design, allowing for future upgrades, which is beneficial for the development of this stripping machine.

Optional MES system, Internet of Things system, fixed – point coding function, middle stripping function, and external auxiliary equipment alarm, enhancing the functionality of this wire stripping and cutting machine.

Strong Customization: Providing various accessories, customizable systems, supporting special cable processing and non – standard customization, making it adaptable to different needs like a stripmeister wire stripping machine.

Specification Adaptability: With dimensions of 7075901140mm and a net weight of 140kg, it is a desktop device, suitable for desktop use scenarios, and can be regarded as a desktop – type automatic stripper and wire strip machine.

Technical Data

Model	CS-3030Y（with table）
Display Mode	7-inch
Functions	Automatic fixed-length cutting and stripping for single-core wires, multi-core cables, shielded cables
Wire Types	Single-core wires, multi-core cables, shielded cables, electric wires, PVC, etc.
Processing Range	0.75 — 30mm²
Cutting Length	1mm – 999999.99mm
Cutting Tolerance	Within 0.002*L (L = cutting length)
Stripping Length	Front full stripping: 1 – 200mm; Front half stripping: 1 – 1500mm
	Back full stripping: 1 – 100mm; Back half stripping: 1 – 300mm
Maximum Allowed Diameter	Φ18
Tool Material	High-quality imported high-speed steel
Productivity	3500 PCS/hour (depending on the length and size of the wire)
Drive Mode	16-wheel drive (feeding stepper motor, tool post servo motor); Optional servo feeding
Wire Feeding Mode	Belt feeding, no indentation or scratch on the cable. (With stripping and pressing function)
Lifting Operation Mode	Digital adjustment of pressure wheel height
Power Supply	AC220V 50/60Hz; Optional 110V 50/60Hz
Air Source	0.5Mpa
Dimensions	7075901140 mm
Weight	140 kg
Remarks	Maximum cutting capacity: 50mm²

Additional information

Description

The CS-3030Y (with table) is a high-precision automatic wire cut and strip machine, versatile enough to serve as a wire stripper machine, cable stripper machine, and full automatic wire cutting stripping machine. Its advanced capabilities make it ideal for various industries requiring efficient wire processing:

Electronics & Electrical Industry: As a reliable automatic wire stripper and wire cutting stripping machine, it handles single-core wires, multi-core cables, and shielded cables, ensuring precise cutting and stripping for internal wiring of electronic components and electrical devices, guaranteeing stable circuit connections.
Automotive Wire Harness Industry: This automatic wire cutter and stripper excels in processing automotive wires, functioning as a cable cut and strip machine to handle complex automotive harnesses. It meets high-precision requirements for fixed-length cutting and stripping of automotive-grade wires, supporting the assembly of reliable vehicle wiring systems.
Communication Industry: Acting as a specialized cable processing machine and coax stripping machine (with custom configurations), it processes communication cables (including shielded cables) to deliver accurately stripped and cut wires, ensuring reliable signal transmission in communication equipment.
Home Appliance Manufacturing: As an efficient automatic wire cutting and stripping machine, it processes internal connecting wires, PVC wires, and electrical cables for refrigerators, air conditioners, washing machines, etc., streamlining production with consistent, high-quality wire preprocessing.
Instrumentation & Medical Devices: This precision automatic wire length cutter and wire stripping automatic machine handles delicate wires for instruments and medical equipment, providing accurate cutting tolerance and stripping lengths to maintain measurement precision and equipment safety.
Industrial Automation: Serving as a fully automatic wire cutting stripping machine and wire cutting stripping and twisting machine (with optional accessories), it integrates with production lines to process wires for automation equipment, enhancing efficiency in large-scale manufacturing.
