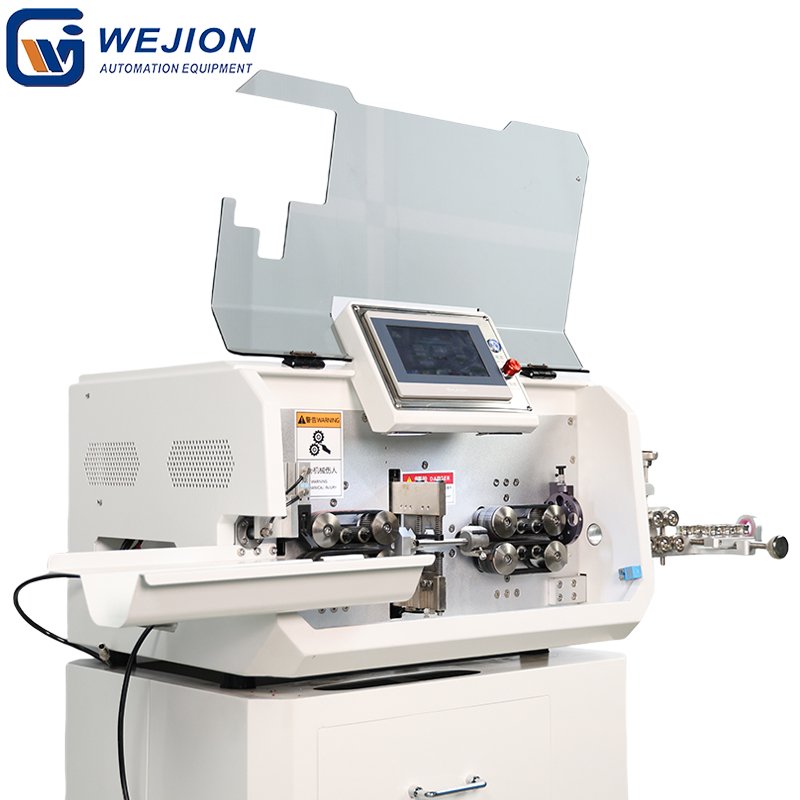

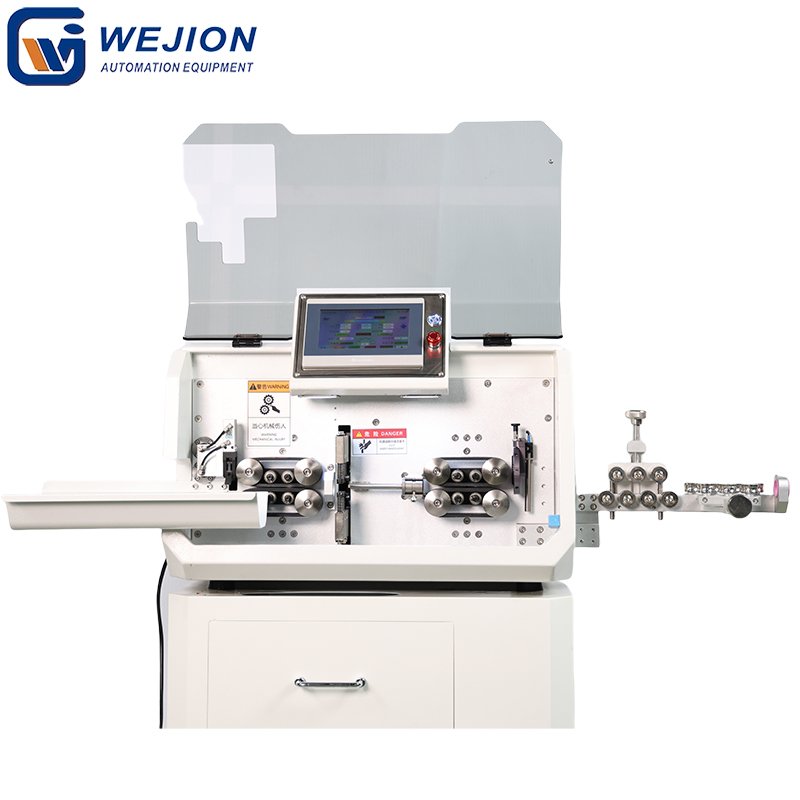

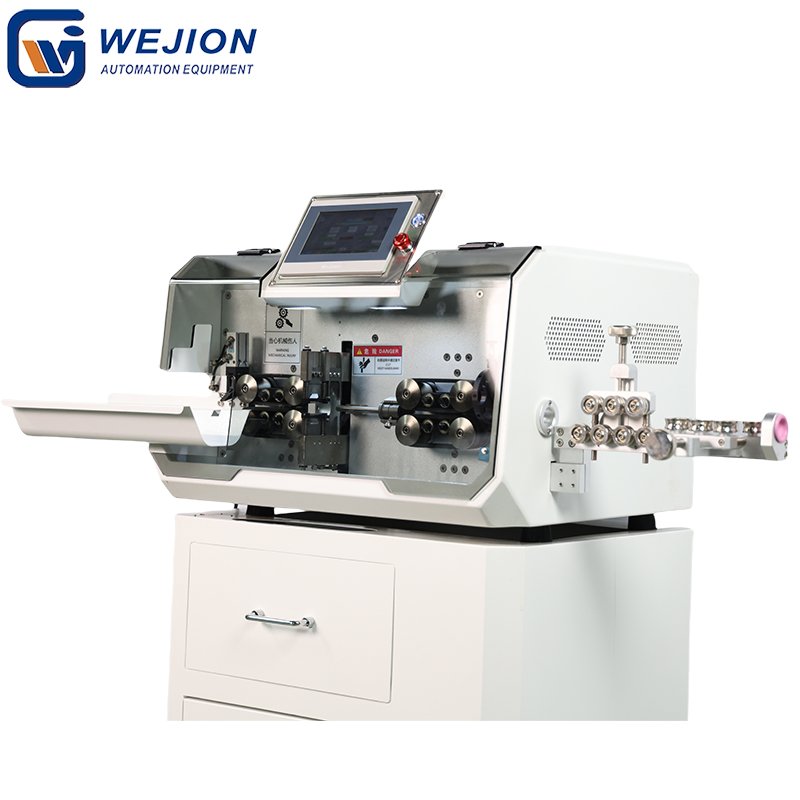

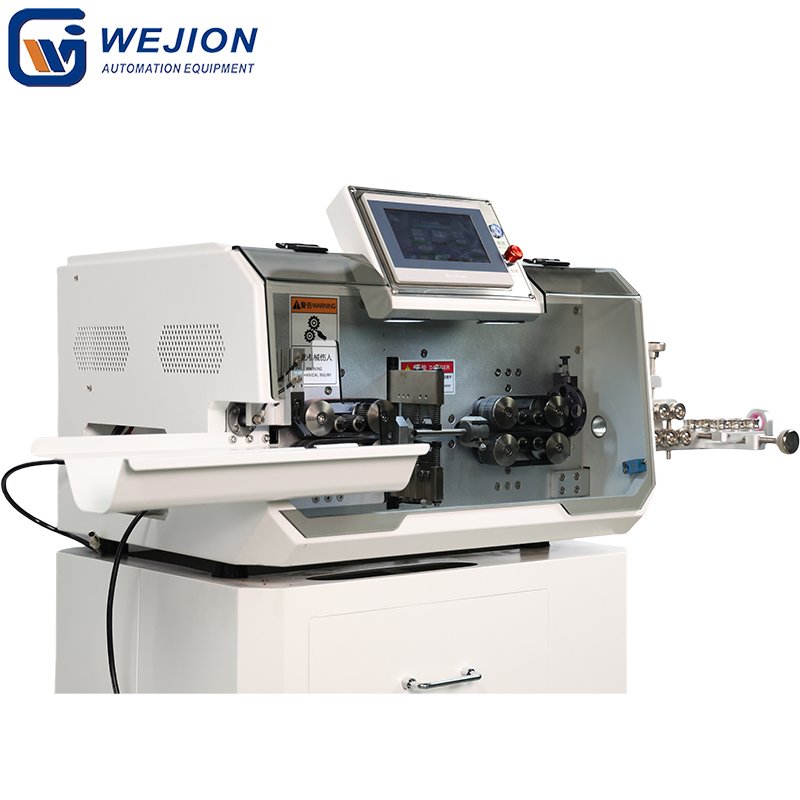

CS-3030HJ Automatic Sheathed Wire Inner and Jacket Stripping Machine With Manipulator(Φ0-18mm)(0.75-30mm²)

The CS-3030HJ is suitable for cutting and stripping multi-core sheathed wires.

Model CS-3030HJ Category Cut & Strip Tags Jacket Stripping Machine, Wire Cutting Stiping Machine

Description

Functions:

The CS-3030HJ automatic wire cutter and stripper offers comprehensive wire processing capabilities, suitable for various wire types.
Specializes in fully automatic fixed-length cutting and stripping for single-core wires, multi-core cables, and shielded cables with precise handling.
Completes outer sheath stripping, inner core stripping, and cutting of multi-core sheathed wires in one step, streamlining workflow.
Accommodates diverse wire types: single-core wires, multi-core cables, sheathed wires, electrical wires, and PVC wires, ensuring versatility.
Handles common wire sizes within a reasonable range, including sheathed wires with up to 10 cores.
Equipped with high-quality imported high-speed steel cutters for efficient and durable performance.
Features a 16-wheel drive system, with optional servo feeding for enhanced precision.
Uses belt feeding mechanism to prevent cable damage; pressure wheel height is digitally adjustable for optimal handling.

Features:

Equipped with a user-friendly 7-inch color touchscreen HMI for intuitive operation and easy parameter setting, reducing training time.
Offers optional configurations: MES systems, IoT systems, fixed-point inkjet printing, and middle stripping, adapting to smart factories.
Modular interface design enables easy connection with accessories and peripherals, integrating smoothly into production lines.
Modular design allows future upgrades, ensuring long-term usability.
Provides various optional accessories and non-standard customization for special cable processing.
Operates on standard power supply (optional version available), requires clean air source; compact size and manageable weight save workshop space.
Boasts extended maximum cutting capacity to handle more demanding tasks.

Technical Data

Model	CS-3030HJ (Inner and Outer Stripper With Manipulator)
Display	7-inch HMI
Functions	1. Fully automatic fixed-length cutting and stripping for single-core wires, multi-core cables, and shielded cables
Functions	2. One-step completion of outer sheath stripping, inner core stripping, and cutting for multi-core sheathed wires
Wire Types	Single-core wires, multi-core cables, sheathed wires, electrical wires, PVC wires, etc.
Processing Range	0.75 – 50 mm² (including sheathed wires with up to 10 cores)
Cutting Length	1mm – 999999.99mm
Cutting Tolerance	Within 0.002*L (where L = cutting length)
Stripping Length	Front stripping:- Outer sheath: 10-200mm (full stripping),- Inner core: 1-50mm
Stripping Length	Rear stripping:- Outer sheath: 10-80mm (full stripping),- Inner core: 1-50mm
Maximum Allowable Diameter	Φ18
Cutter Material	High-quality imported high-speed steel
Productivity	Up to 3500 pcs/hour (standard wires); 900 pcs/hour (sheathed wires)
Productivity	(Depends on wire length and size)
Drive System	16-wheel drive (feeding stepping motor, tool post servo motor),Optional servo feeding available
Wire Feeding Method	Belt feeding (no indentation or scratches on cables)
Power Supply	AC220V 50/60Hz:Optional 110V 50/60Hz
Air Supply	0.5Mpa
Dimensions	680605520 mm
Net Weight	95kg
Remarks	Maximum cutting capacity: 50 mm²
