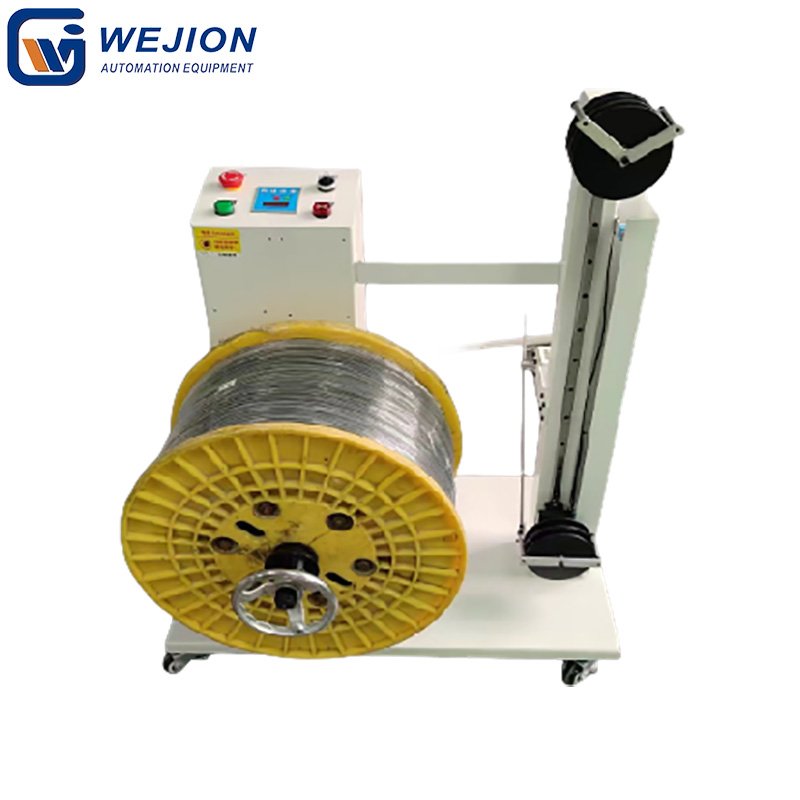

CP-W001 automatic speed regulating wire feeding machine max. 50kg

Name: CP-W001 automatic speed regulating wire feeding machine max. 50kg - Wire Processing
SKU: CP-W001
Availability: InStock

This feeding machine is capable of automatic induction and automatic braking, and is suitable for fully automatic terminal crimping machines, computerized wire strippers, and soldering machines.

Model CP-W001 Category Feeder / Collector Tags Cable prefeeder, Wire feeding

Description

High-power 750W motor with stepless variable speed up to 4m/s and automatic speed adjustment (no manual operation required).
Load capacity up to 50kg, compatible with reels up to 500mm in diameter and 300mm in width.
Active wire feeding system with automatic induction braking and alarm function for safety.
Low noise operation, uniform-speed guide rail with no resistance, and adjustable wire wheels for different wire diameters (≤6.0mm).
Dimensions of 670×800×1030mm and weight ~50kg, suitable for industrial use.
Customizable maximum pay-off width, adaptable to various production needs.
Connectable to automation systems for seamless integration and process control.

Technical Data

Model	CP-W001
Max Load Weight	50kgs
Speed setting	10 for choice
Spool Size	Width ≤ 300mm, Dia ≤ 300mm (custom available)
Power Supply	220V 750W (Custom 110V)
Dimensions	6708001030mm
Weight	50kg
