CP-680 electric wire prefeeder machine cable feeding machine for large cable spool

This fully automatic pay-off stand is suitable for all types of wires and various sizes of wire spools.

Model CP-680 Category Feeder / Collector Tags Cable prefeeder, Wire feeding machine

Description

Functions

Automated Wire Unwinding: Equipped with a 0.55kW domestic gear motor and vector frequency converter, enabling automatic wire unwinding at a maximum speed of 70m/min. Compatible with wire diameters up to 16mm, meeting the efficient conveying needs of various wire types.

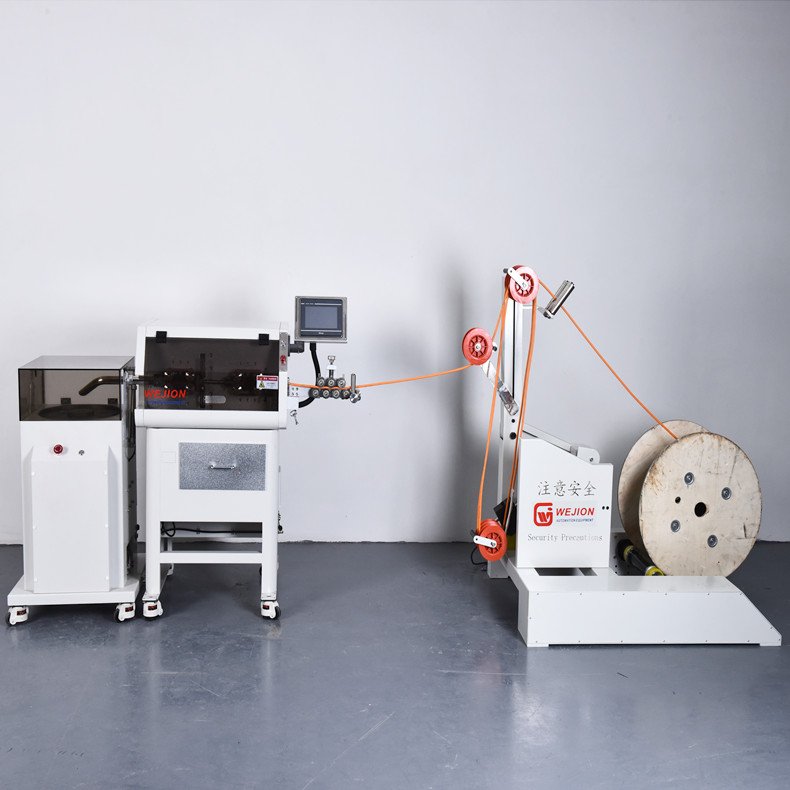

Intelligent Speed Adjustment: Utilizes a multi-speed induction system via the frequency converter to automatically regulate unwinding speed based on the lifting height of the wire storage wheel. Meanwhile, the tension pulley potentiometer (via sprocket drive) provides real-time feedback signals to the frequency converter, ensuring precise synchronization between unwinding speed and the computerized wire stripping machine, eliminating the need for frequent manual intervention.

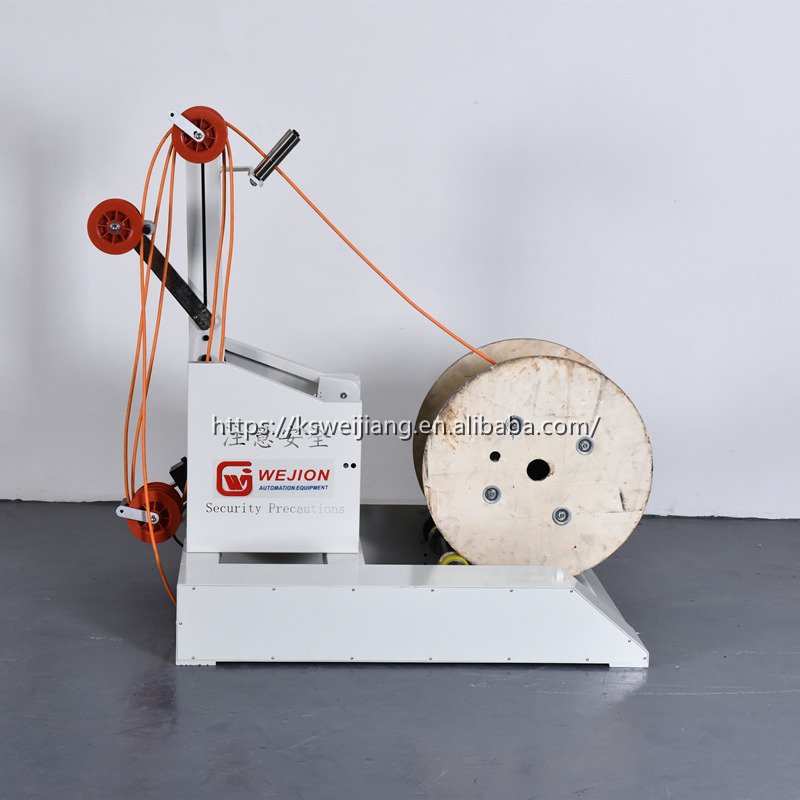

Flexible Tension Control: Adjusts tension by leveraging the lever principle through repositioning counterweights, ensuring stable wire tension during conveyance to prevent slack or over-tightening.

Features

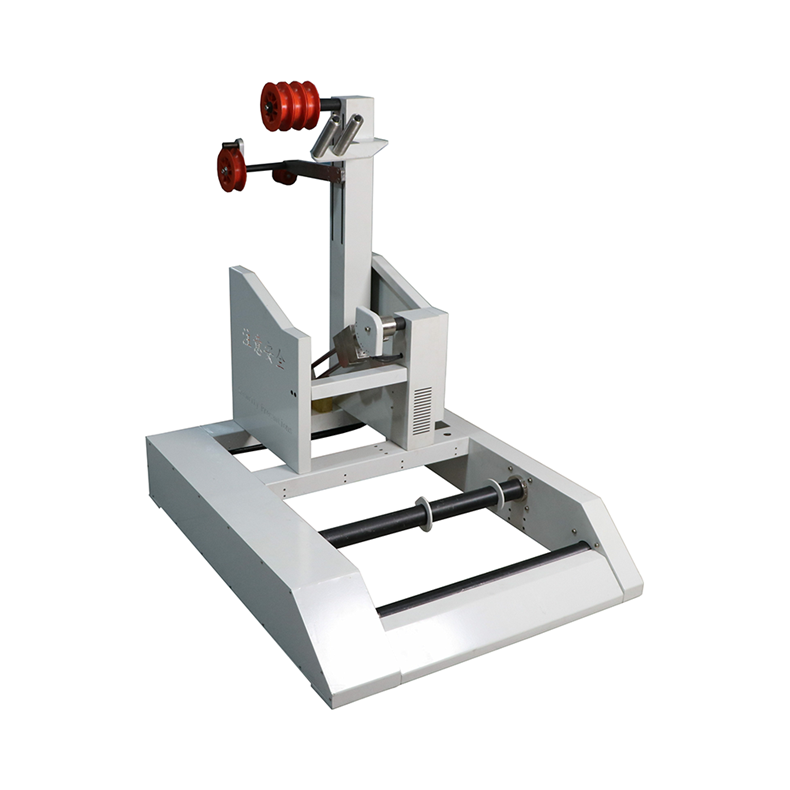

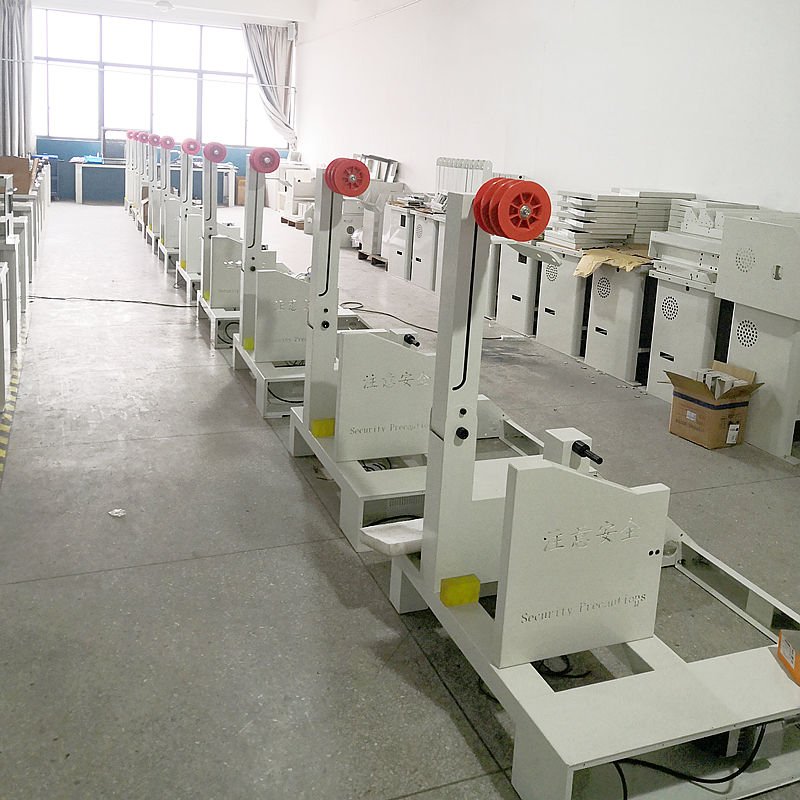

Robust Structure: Main frame constructed from high-quality carbon steel via sheet metal bending and welding processes, combining structural stability with aesthetic design to withstand prolonged, high-intensity industrial operations.
Convenient Reel Handling: Supports manual reel lifting for reels ranging from 300-700mm in diameter (specific dimensions required from customer). Accommodates reels up to 680mm in width and 150Kg in weight, ensuring compatibility with diverse reel specifications for versatile production needs.

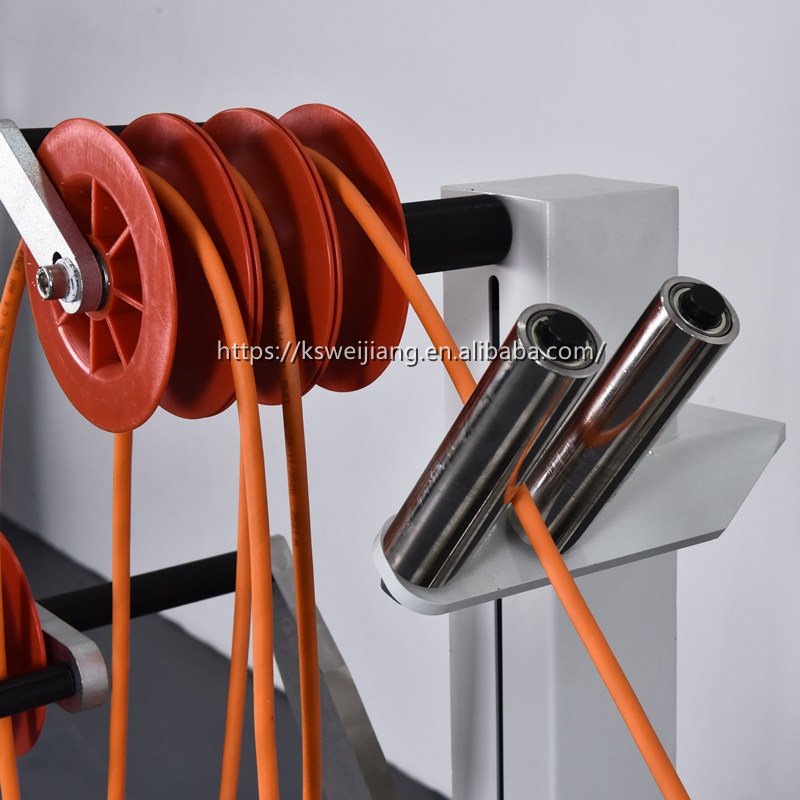

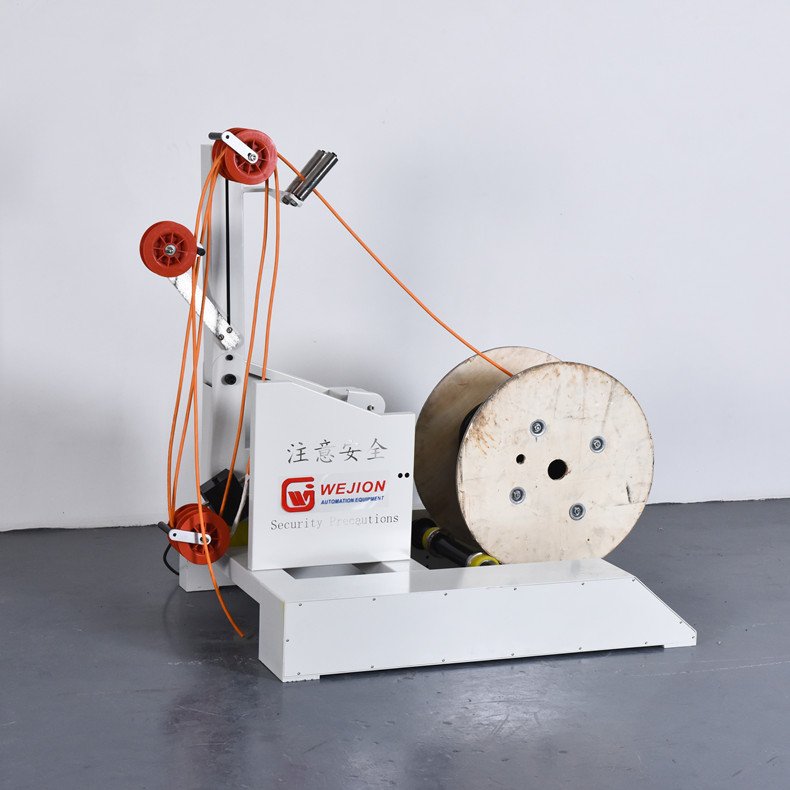

Precision Tension Components: Features a specialized tension pulley system with 3 upper fixed pulleys and 2 lower movable pulleys (140mm diameter each), enabling precise tension control for smooth and orderly wire unwinding, enhancing wire processing quality.

Technical Data

Model	CP-680	CP-680C
Available Wire Diameter	≤ Φ30mm	≤ Φ30mm
Available Spool Width (height)	max 680mm	max 680mm
Available Spool Out Diameter	200-720mm	600-1200mm
Available Spool Inner Diameter	No limit	No limit
Max Load Weight	100kg	220kg
Feeding Speed	0-60 m/min	0-60 m/min
Power Supply	380V / 220V
Available Wire	Wire, cable etc.
Drive Type	Inverter & motor & reducer
Dimensions	10462140cm	205156185cm
Weight	135kg	550kg

Additional information

Description

CP-680 (Standard Model)

Suitable for small to medium-sized wire processing scenarios, focusing on the following key areas:

Consumer Electronics & Telecommunications: Compatible with communication cables (e.g., Ethernet, HDMI) and internal wiring harnesses of electronic devices with a diameter ≤30mm. Supports medium-sized reels with a width ≤680mm and weight ≤100kg, ideal for automated wiring harness production in smartphones and smart home devices.
Light Industry & Small Appliances: Used for unwinding power cords, headphone cables, and other thin-diameter wires, particularly suited for small to medium factories requiring compatibility with flexible reel sizes (outer diameter 200-720mm).
Automated Equipment Assembly: Provides precise wire unwinding for small automated production lines, such as wiring harness processing for office equipment and small motors, balancing speed (0-60m/min) and tension control.

CP-680C (Heavy-Duty Reinforced Model)

Specifically designed for large-diameter, heavy-load cables, with core applications including:

Industrial Power & Energy: Supports heavy-duty reels with an outer diameter of 600-1200mm and a weight of up to 220kg. Compatible with large-diameter wires (≤Φ30mm) such as high-voltage cables and power transmission lines, meeting the needs of power stations, substations, and industrial plant power wiring harness processing.
Construction & Infrastructure Projects: Used for unwinding building wiring and underground pipeline cables, particularly suitable for heavy-load reels (e.g., armored cables, large-section power cables) and high-intensity use in construction sites.
Rail Transportation & Shipbuilding: Compatible with heavy-duty wires such as rail transit signal cables and marine power cables, supporting large reels with a width of 680mm to meet the high-precision unwinding requirements of complex wiring harnesses in train carriages and ship interiors.
Heavy Machinery & Equipment: Provides unwinding support for control wiring harnesses of engineering machinery (e.g., cranes, excavators) and large motor cables. Utilizes its high load capacity (220kg) and stable frequency-driven system (0-60m/min) to ensure continuous and precise delivery of heavy-duty wires.

Universal Advantages

Compatibility & Flexibility: Both models support unlimited reel inner diameters, adapting to different reel standards. The frequency-driven motor system is compatible with 380V/220V power supplies, suitable for diverse industrial environments.
Targeted for Heavy-Duty Scenarios: The CP-680C enhances structural stability through an enlarged body size (205156185cm) and weight (550kg), specifically designed for industrial applications requiring handling of “heavy loads and large reels,” avoiding (sway) or precision loss in traditional unwinding equipment under heavy loads.
